Android Integeration with AdMob Mediation

詳細範例

AdMob 21.5.0 Mediation Project (包含橫幅、插頁、原生廣告)

新增應用程式

AdMob網站: https://apps.admob.com/

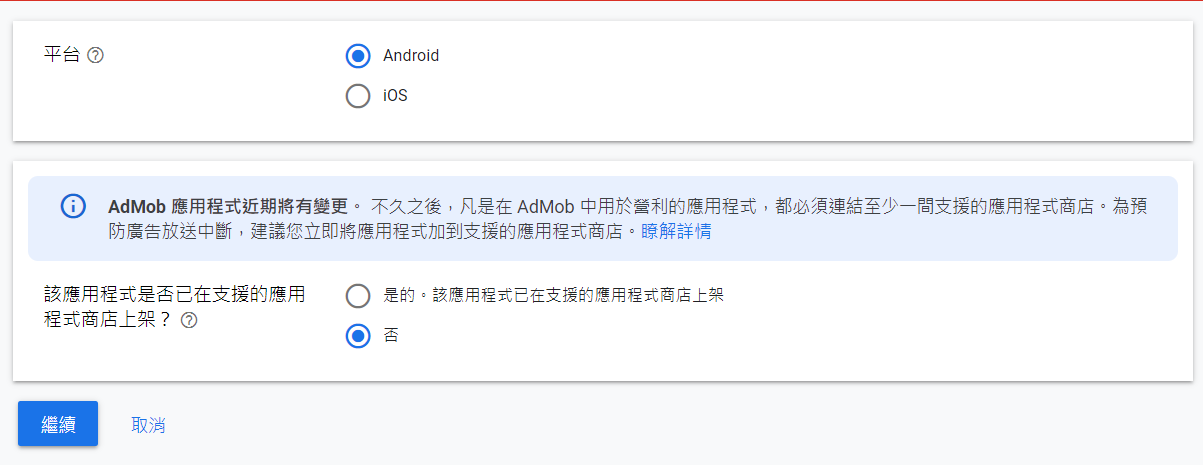

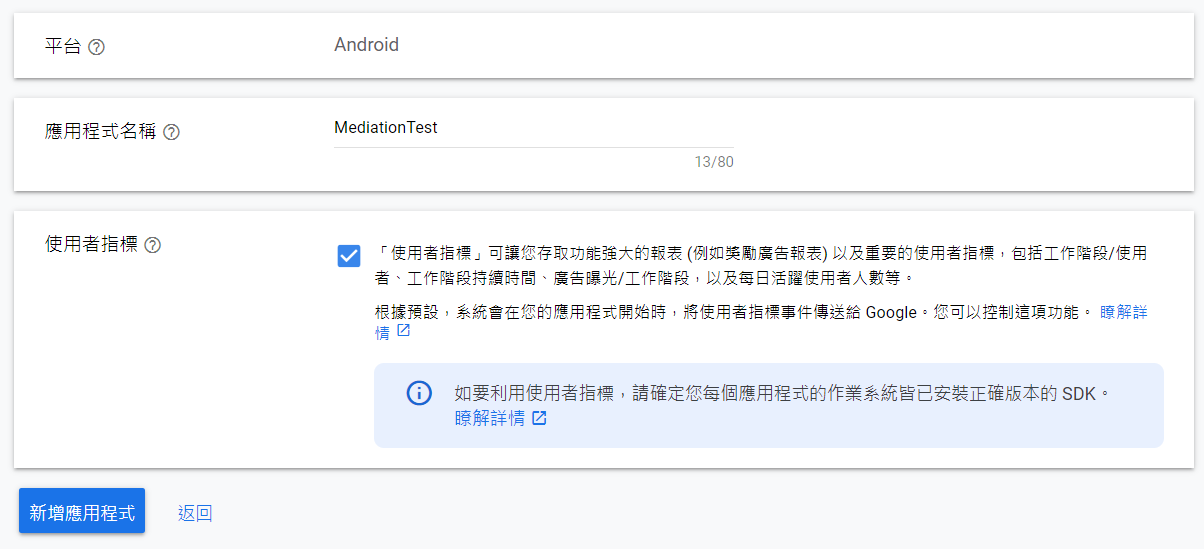

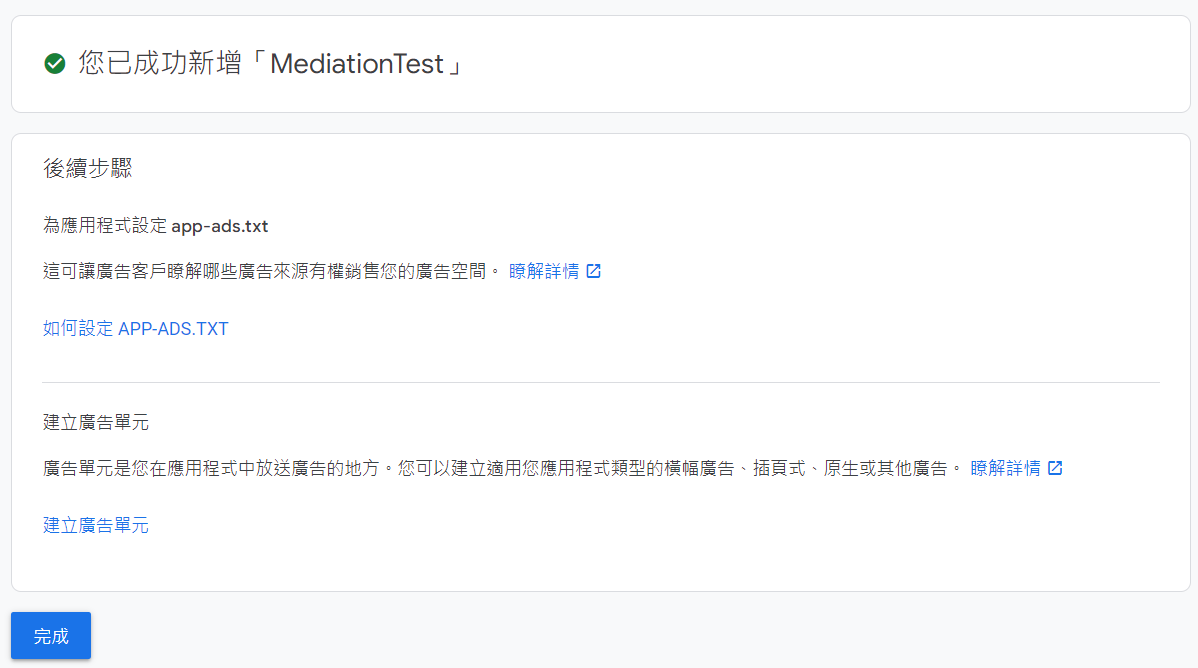

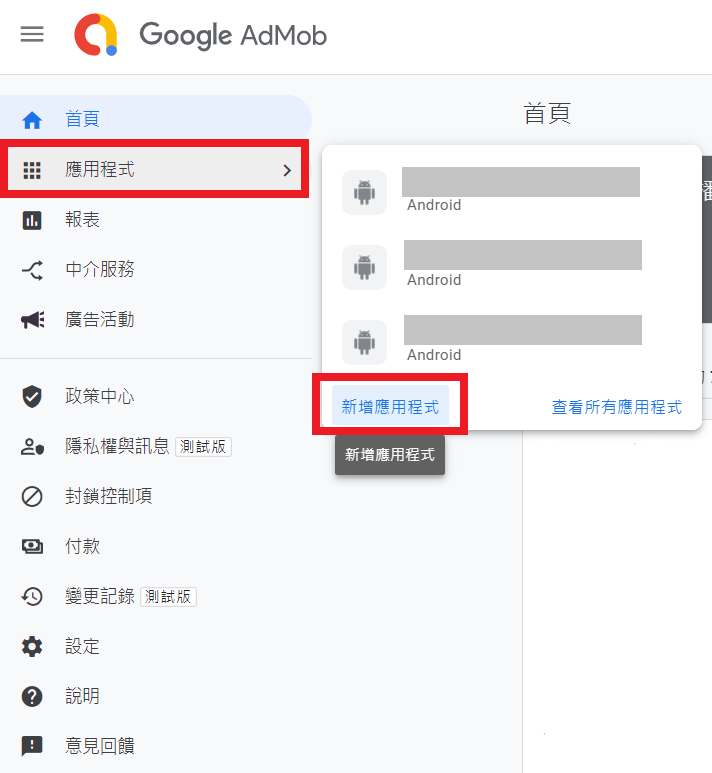

• 進入 AdMob 網頁選擇 應用程式 > 新增應用程式

新增廣告單元

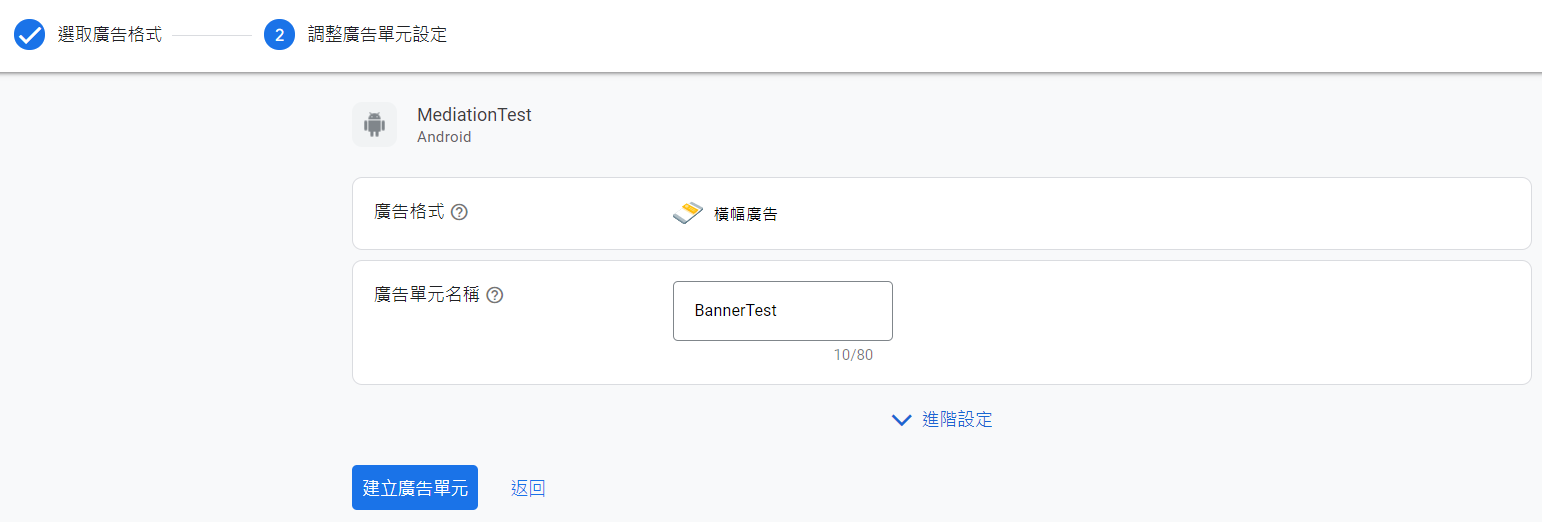

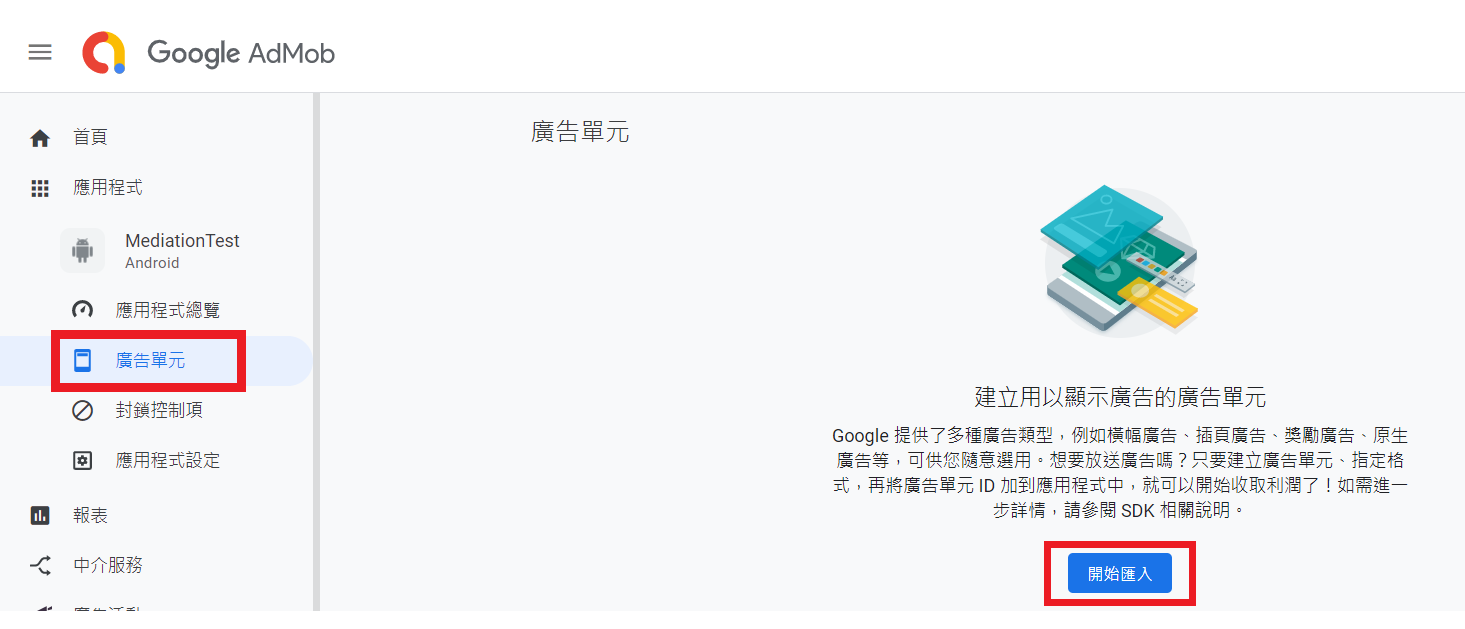

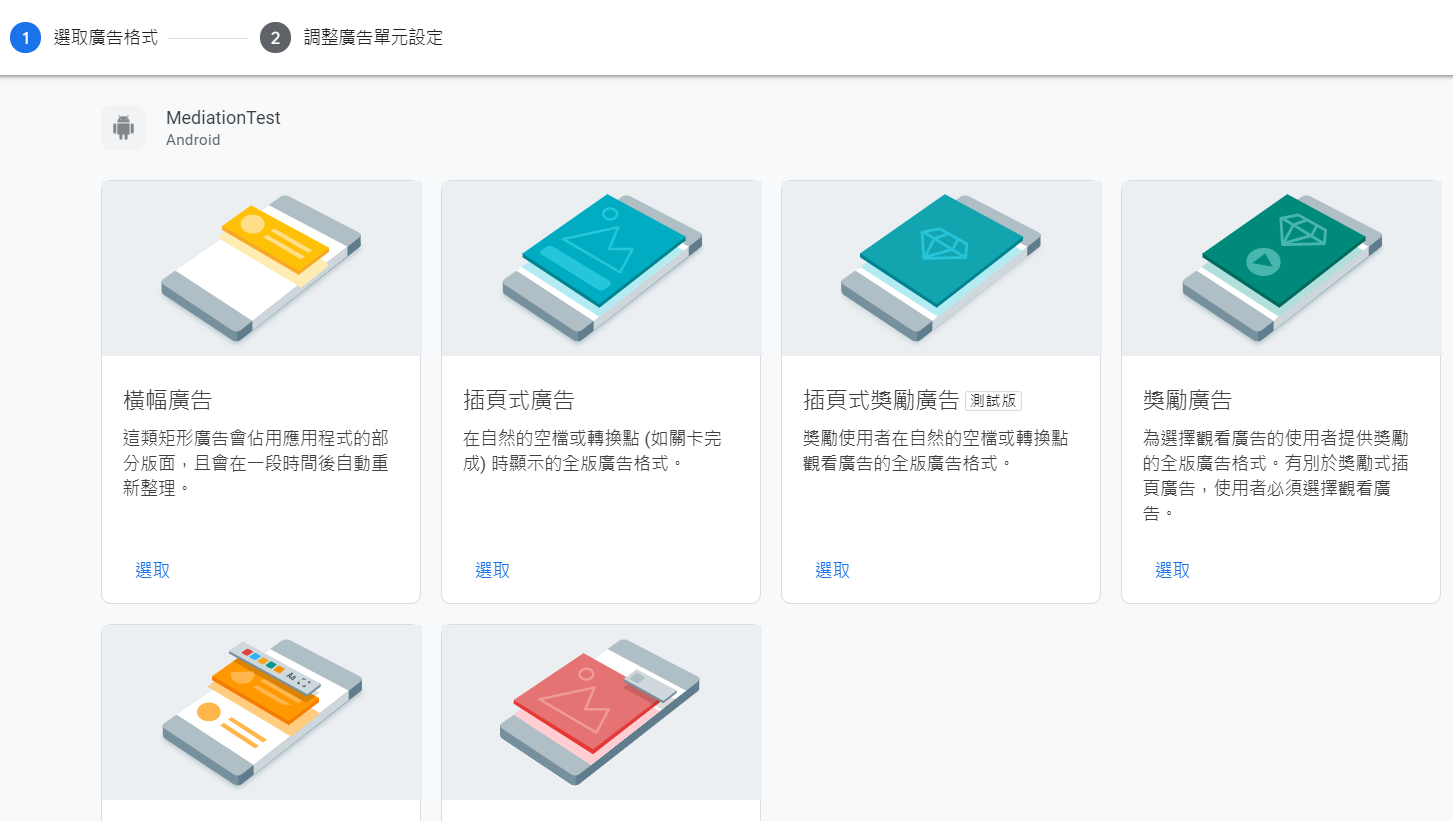

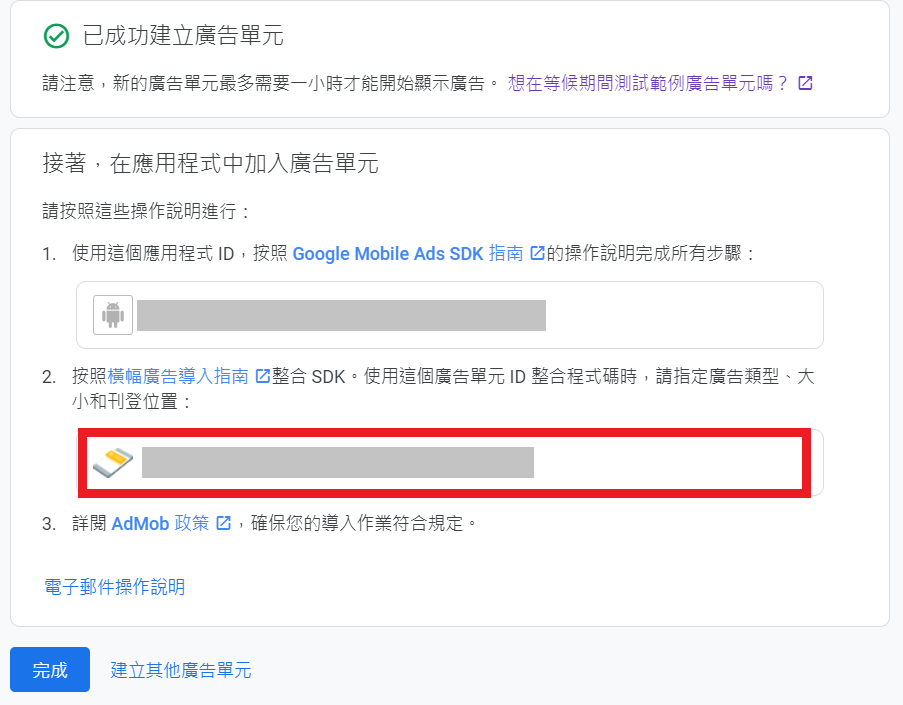

• 點選先前建立的應用程式並選擇 廣告單元 > 開始匯入

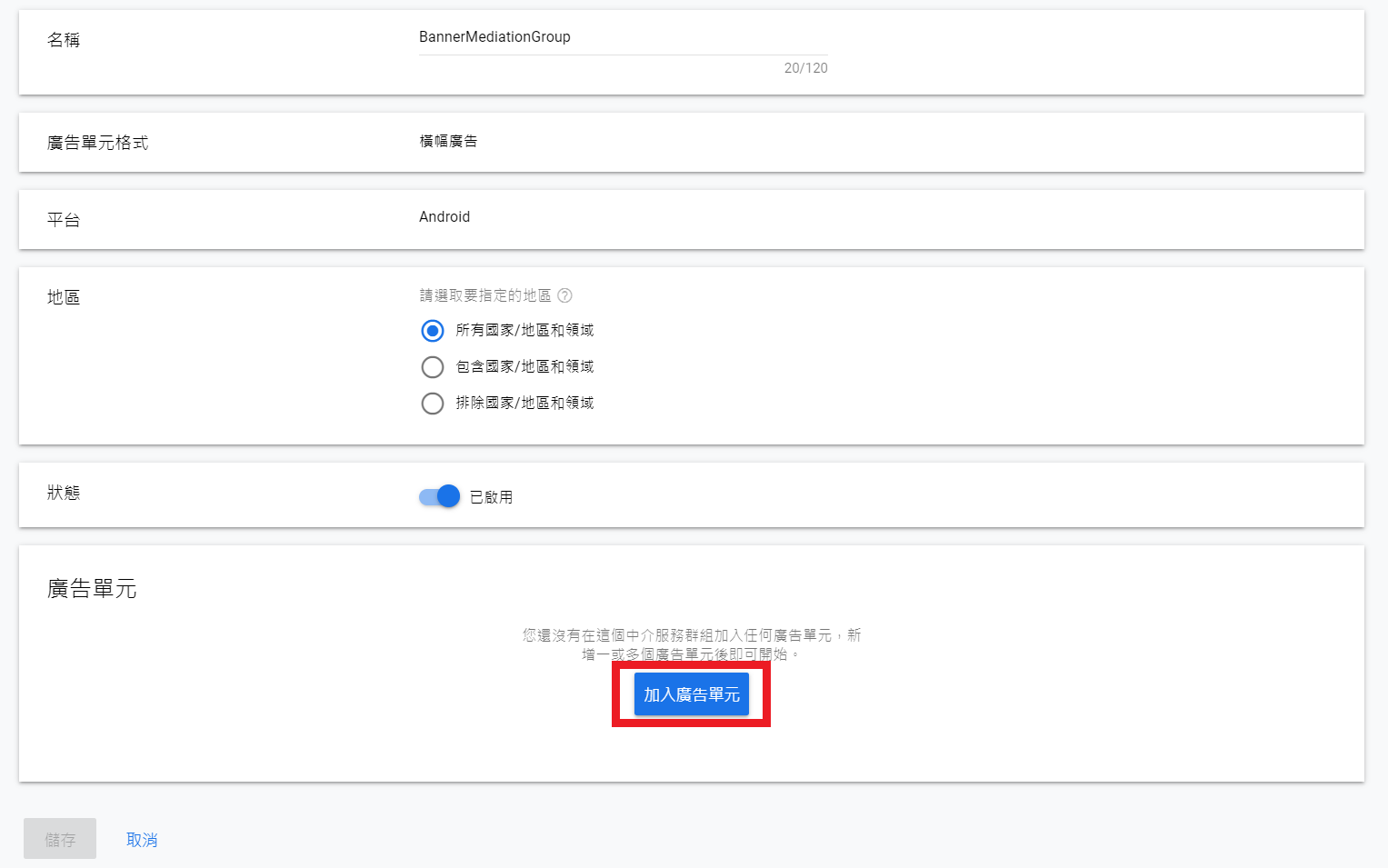

新增中介服務群組

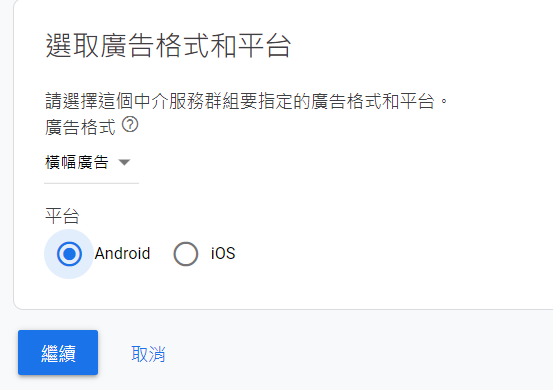

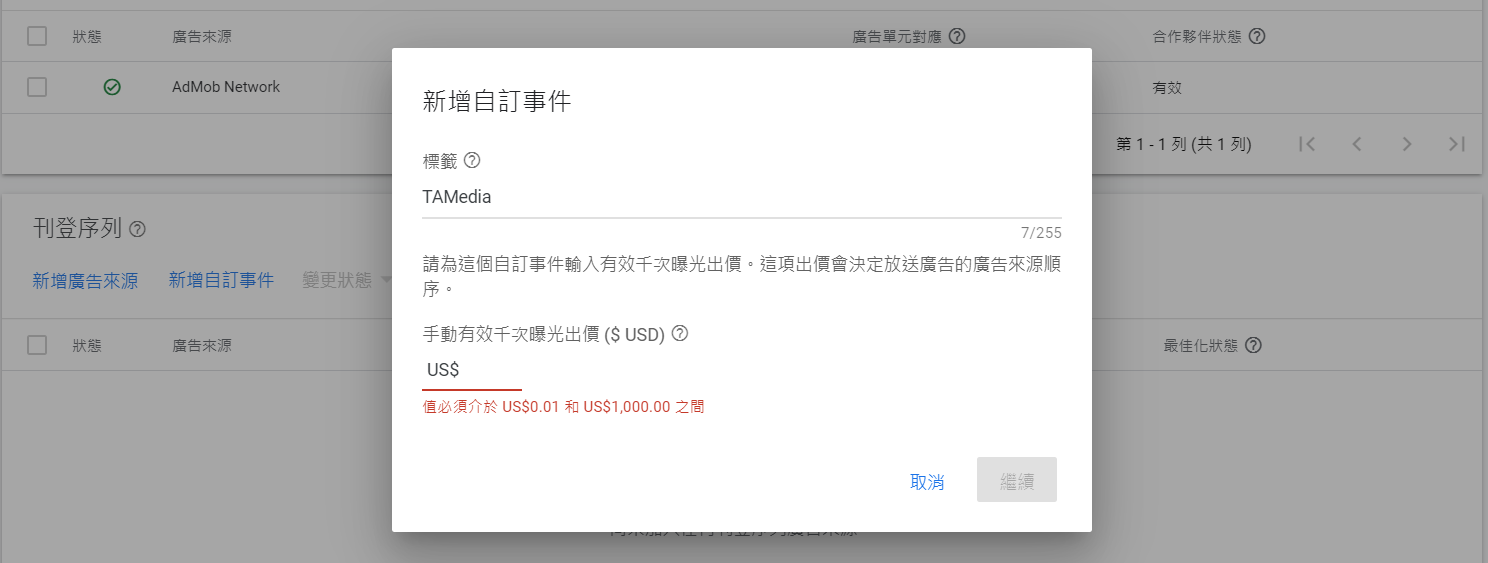

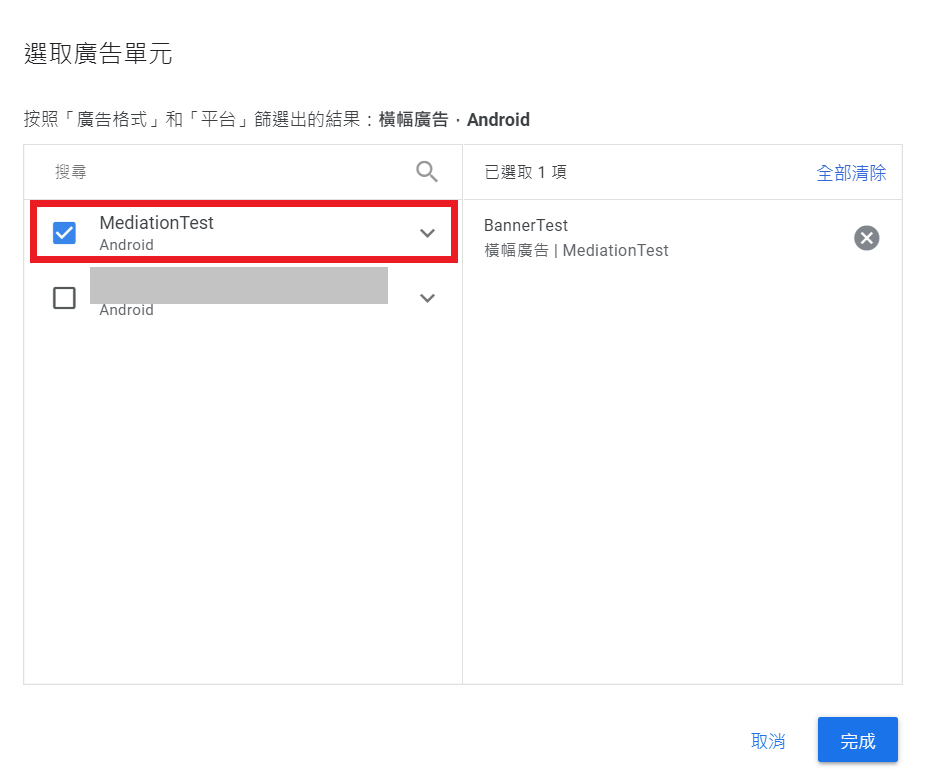

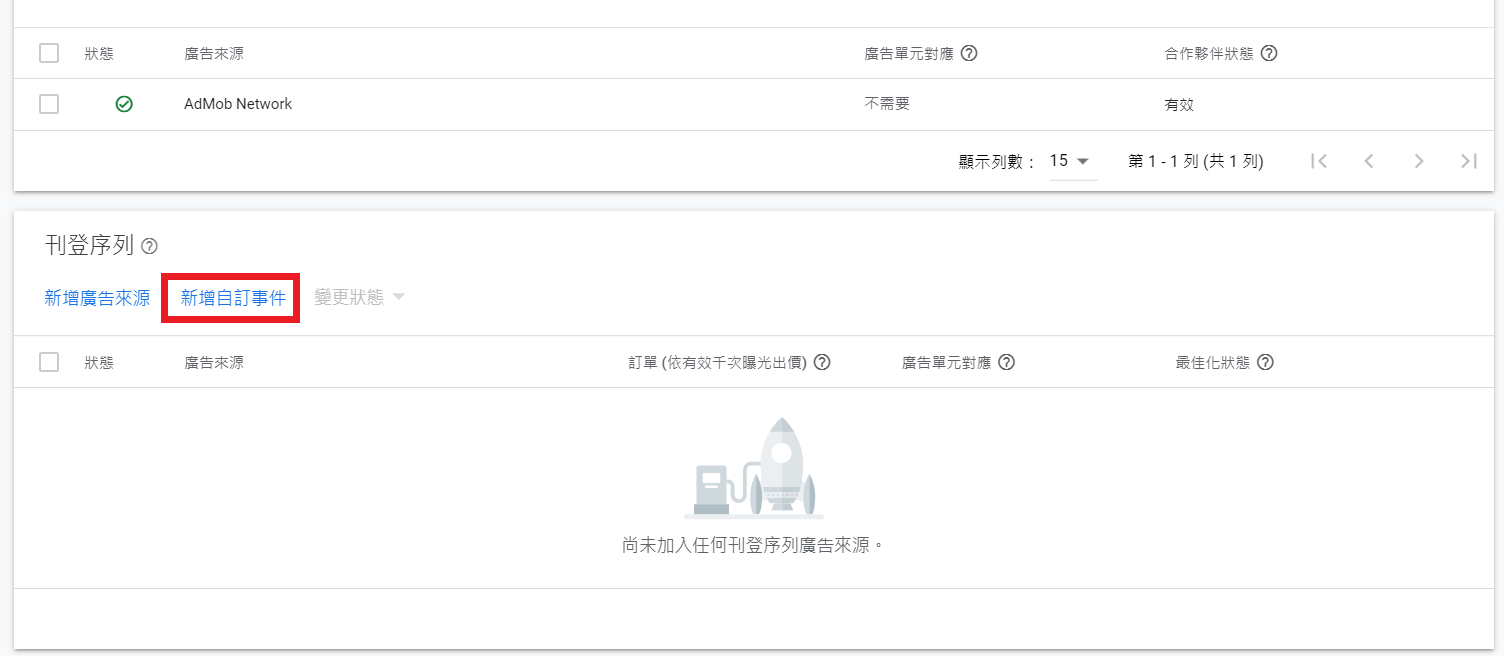

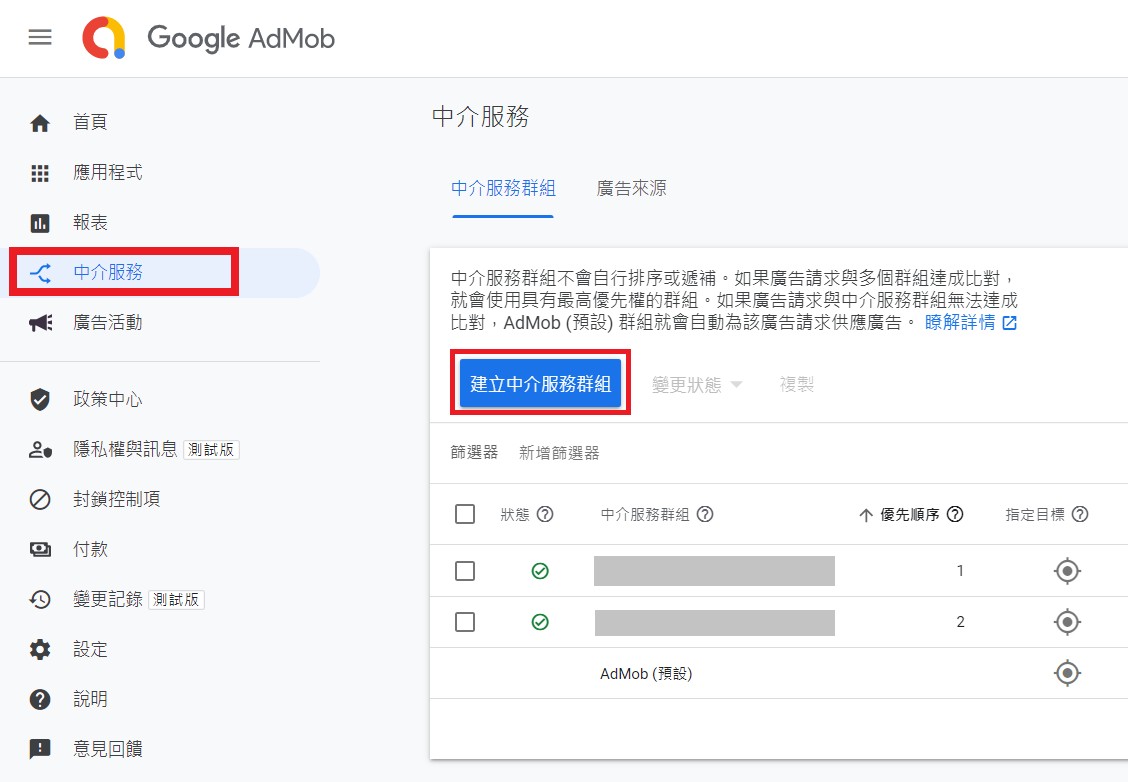

• 進入 AdMob 網頁選擇 中介服務 > 新增中介服務群組

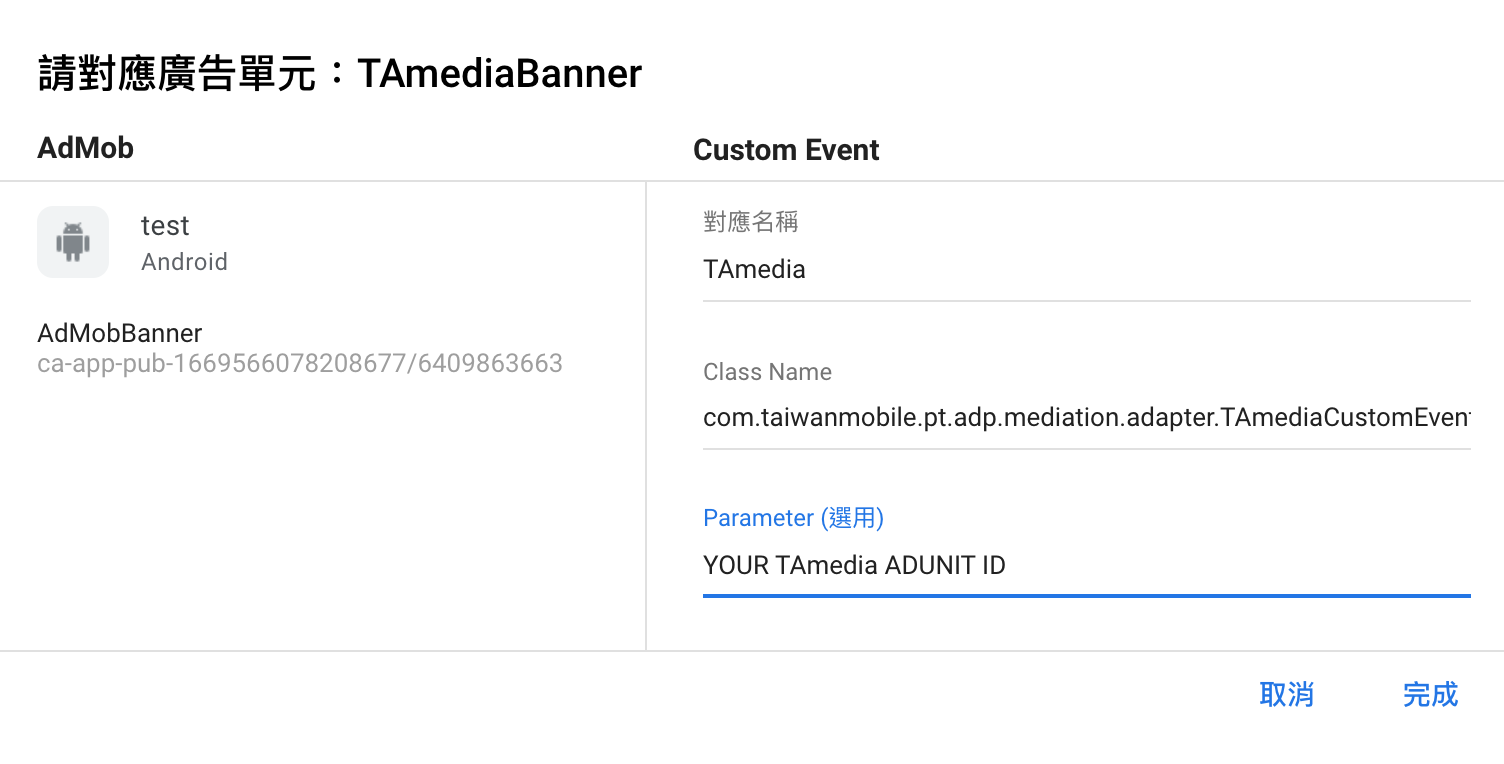

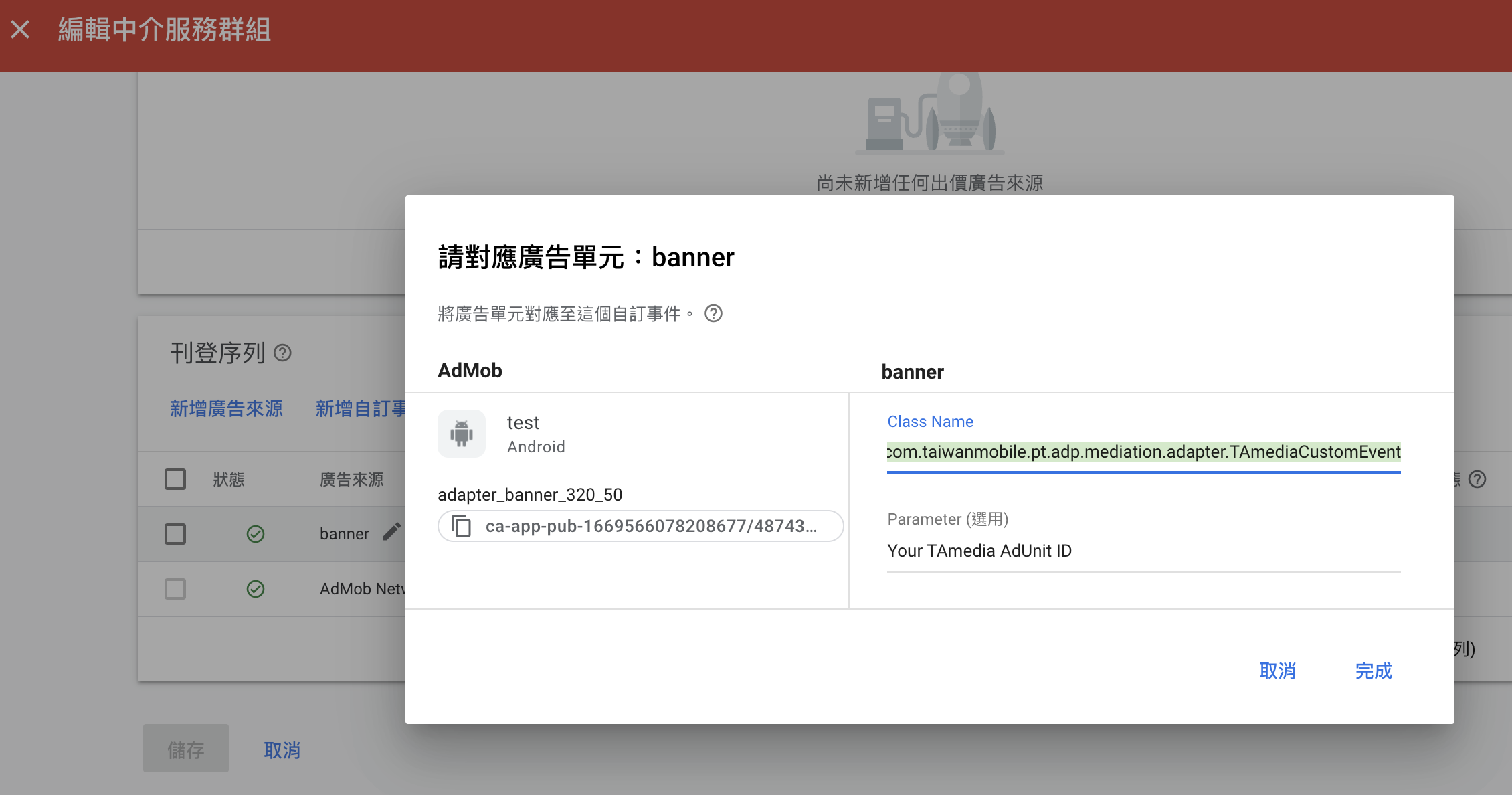

TAmedia廣告版位ID

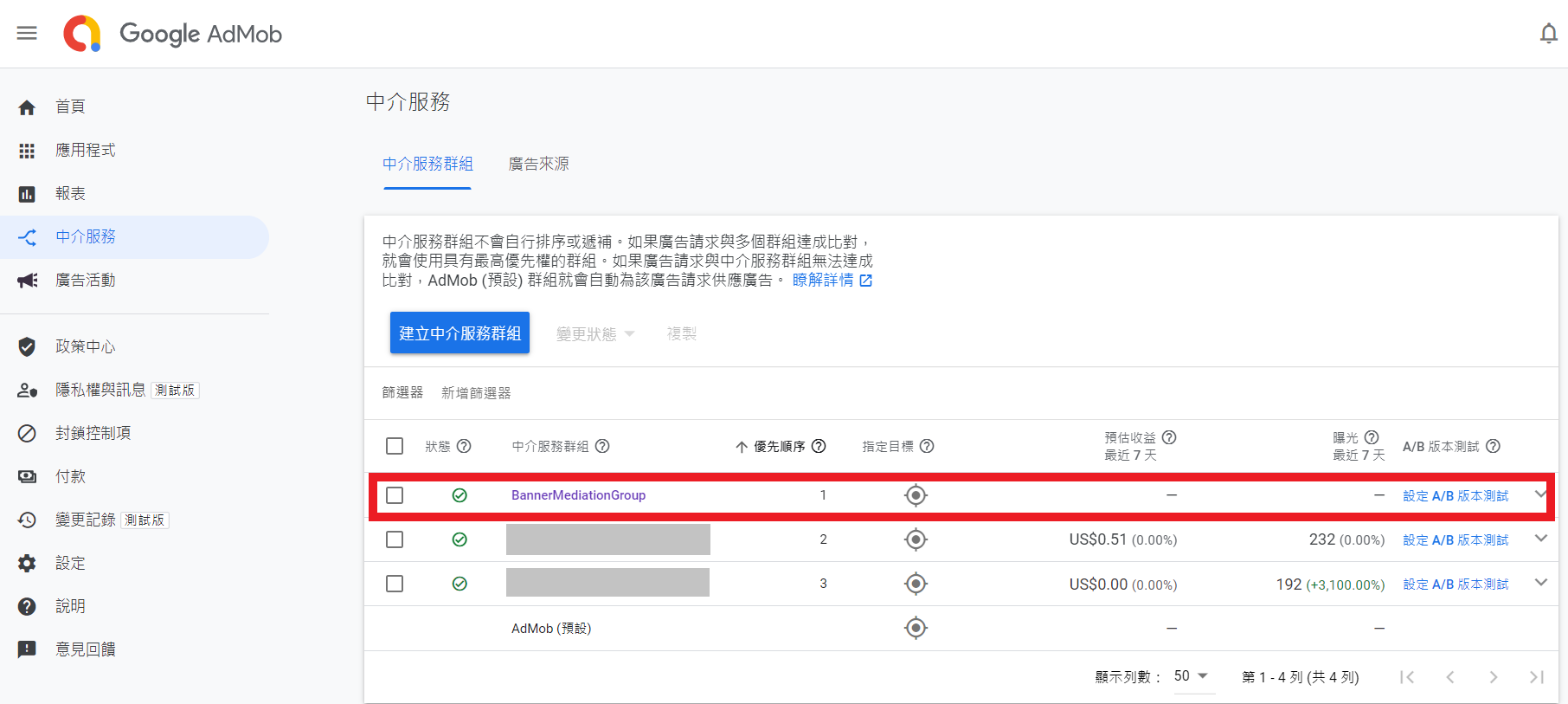

點選完成後，中介服務群組的設置便結束

程式整合

1. 請參考AdMob for Android 網站提供的方式整合Google Ads SDK，此步驟會使用到新增應用程式所取得的應用程式ID

2. 下載 TAMedia Android SDK，並參考 開始使用Getting Started 整合TAMedia Android SDK

3. 至詳細範例, 下載 AdMob 21.5.0 Mediation Project，並整合下列Mediation Code進開發者專案中

Mediation Code

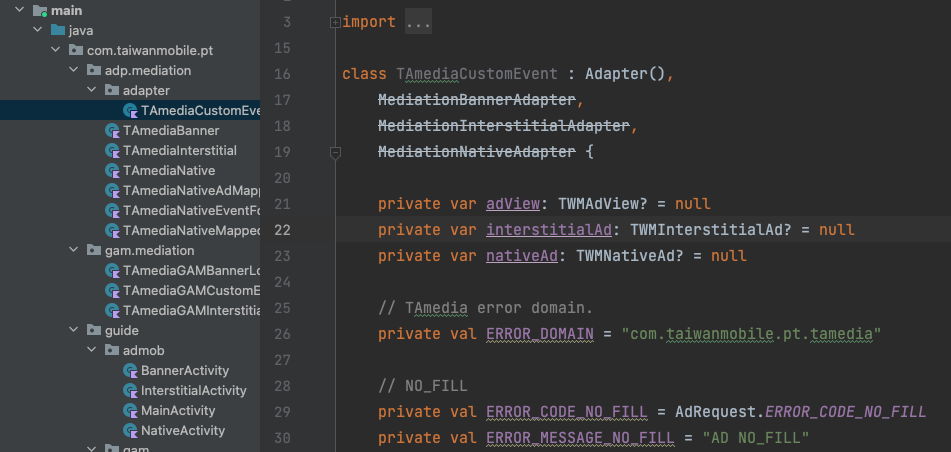

Banner / Interstitial / Native等中介實作皆在TAmediaCustomEvent

Proguard

下列mediation class, 開發商於proguard中須進行保護, 避免混淆後找不到該class造成AdMob SDK拋出錯誤訊息

Could not load custom event implementation class: com.taiwanmobile.pt.adp.mediation.TAmediaNative, trying Adapter implementation class.

-keep class com.taiwanmobile.pt.adp.mediation.** {

    public protected <fields>;

    public protected <methods>;

}

Developer Sample Code

Banner

1. 在MainActivity.kt中輸入AdUnit Id

   companion object {
       private const val ADUNIT_ID_BANNER_320x50 = "{AdMob Banner AdUnit Id}"
       private const val ADUNIT_ID_BANNER_300x250 = "{AdMob Banner AdUnit Id}"
       private const val ADUNIT_ID_SMART_BANNER = "{AdMob Banner AdUnit Id}"
       private const val ADUNIT_ID_INTERSTITIAL = "{AdMob Interstitial AdUnit Id}"
       private const val ADUNIT_ID_NATIVE = "{AdMob Native AdUnit Id}"
       const val KEY_ADUNITID = "adUnitId"
       const val KEY_ADSIZE = "adSize"
   }

2. 在layout檔案中加入可放置廣告的RelativeLayout(※僅供參考,開發者可依照自訂的layout進行配置使用)

   <RelativeLayout
       android:id="@+id/adContainer"
       android:layout_width="wrap_content"
       android:layout_height="wrap_content"
       android:layout_centerHorizontal="true"
       android:layout_alignParentBottom="true">
   </RelativeLayout>

3. BannerActivity 程式加入Banner的宣告, 設定AdUnitId與AdSize

   class BannerActivity : AppCompatActivity() {
       private var adView: AdView? = null
       override fun onCreate(savedInstanceState: Bundle?) {
           super.onCreate(savedInstanceState)
           setContentView(R.layout.activity_banner)
           val adContainer = findViewById<View>(R.id.adContainer) as RelativeLayout
           val args = intent.extras
           if (args != null) {
               val adUnitId = args.getString(MainActivity.KEY_ADUNITID)
               val adSize: AdSize = when (args.getString(MainActivity.KEY_ADSIZE)) {
                   BANNER_320x50 -> {
                       AdSize.BANNER
                   }
                   BANNER_300x250 -> {
                       AdSize.MEDIUM_RECTANGLE
                   }
                   else -> {
                       val displayMetrics = resources.displayMetrics
                       val dpWidth = (displayMetrics.widthPixels / displayMetrics.density).toInt()
                       AdSize.getCurrentOrientationAnchoredAdaptiveBannerAdSize(
                           this,
                           dpWidth
                       )
                   }
               }
                // Banner initial
               adUnitId?.let {
                   val request = AdRequest.Builder().build()
                   adView = AdView(this@BannerActivity)
                   adView?.adUnitId = it
                   adView?.adSize = adSize
                   adView?.adListener = AdListenerImpl()
                   adView?.loadAd(request)
                   // add view into layout
                   adContainer.addView(adView)
               }
           }
       }
}

Interstitial

1. 在MainActivity.kt中輸入AdUnit Id

   companion object {
       private const val ADUNIT_ID_BANNER_320x50 = "{AdMob Banner AdUnit Id}"
       private const val ADUNIT_ID_BANNER_300x250 = "{AdMob Banner AdUnit Id}"
       private const val ADUNIT_ID_SMART_BANNER = "{AdMob Banner AdUnit Id}"
       private const val ADUNIT_ID_INTERSTITIAL = "{AdMob Interstitial AdUnit Id}"
       private const val ADUNIT_ID_NATIVE = "{AdMob Native AdUnit Id}"
       const val KEY_ADUNITID = "adUnitId"
       const val KEY_ADSIZE = "adSize"
   }

2. InterstitialActivity 程式加入Interstitial的宣告, 設定AdUnitId

class InterstitialActivity : AppCompatActivity() {



    private var interstitialAd: InterstitialAd? = null

    private var adUnitId: String? = null

    private lateinit var binding: ActivityInterstitialBinding



    override fun onCreate(savedInstanceState: Bundle?) {

        super.onCreate(savedInstanceState)

        binding = ActivityInterstitialBinding.inflate(layoutInflater)

        val view = binding.root

        setContentView(view)



        val args = intent.extras

        if (args != null) {

            adUnitId = args.getString(MainActivity.KEY_ADUNITID)

        }

    }



    // triggered in activity_int.xml

    fun fireAd(v: View?) {

        adUnitId?.let {

            val adRequest = AdRequest.Builder().build()

            InterstitialAd.load(this, it, adRequest, object : InterstitialAdLoadCallback() {

                override fun onAdLoaded(interstitialAd: InterstitialAd) {

                    this@InterstitialActivity.interstitialAd = interstitialAd

                    Toast.makeText(

                        baseContext,

                        "onAdLoaded(interstitial) invoked!!",

                        Toast.LENGTH_SHORT

                    ).show()

                    interstitialAd.show(this@InterstitialActivity)

                }



                override fun onAdFailedToLoad(loadAdError: LoadAdError) {

                    Toast.makeText(

                        baseContext,

                        loadAdError.message,

                        Toast.LENGTH_SHORT

                    ).show()

                    interstitialAd = null

                }

            })

        }

    }

}

=== Native ===

1. 在MainActivity.kt中輸入AdUnit Id

   companion object {
       private const val ADUNIT_ID_BANNER_320x50 = "{AdMob Banner AdUnit Id}"
       private const val ADUNIT_ID_BANNER_300x250 = "{AdMob Banner AdUnit Id}"
       private const val ADUNIT_ID_SMART_BANNER = "{AdMob Banner AdUnit Id}"
       private const val ADUNIT_ID_INTERSTITIAL = "{AdMob Interstitial AdUnit Id}"
       private const val ADUNIT_ID_NATIVE = "{AdMob Native AdUnit Id}"
       const val KEY_ADUNITID = "adUnitId"
       const val KEY_ADSIZE = "adSize"
   }

2. NativeActivity的layout如下, 在layout檔案中加入可放置原生廣告的nativeContainer(※這裡以FrameLayout為例,開發者可依照自訂的layout進行配置使用)

   <LinearLayout
       xmlns:android="http://schemas.android.com/apk/res/android"
       android:layout_width="match_parent"
       android:layout_height="match_parent"
       android:paddingBottom="@dimen/activity_vertical_margin"
       android:paddingLeft="@dimen/activity_horizontal_margin"
       android:paddingRight="@dimen/activity_horizontal_margin"
       android:paddingTop="@dimen/activity_vertical_margin"
       android:orientation="vertical">
   <FrameLayout
           android:id="@+id/native_container"
           android:layout_width="match_parent"
           android:layout_height="wrap_content"
           android:layout_marginTop="@dimen/activity_vertical_margin" />
   </LinearLayout>

3. 準備廣告佈局native_ad.xml, 使用AdMob com.google.android.gms.ads.nativead.NativeAdView

   <com.google.android.gms.ads.nativead.NativeAdView
       xmlns:android="http://schemas.android.com/apk/res/android"
       android:layout_width="match_parent"
       android:layout_height="wrap_content"
       android:orientation="vertical">
           <LinearLayout
               android:layout_width="match_parent"
               android:layout_height="wrap_content"
               android:layout_gravity="center"
               android:background="#FFFFFF"
               android:minHeight="50dp"
               android:orientation="vertical">
               <LinearLayout
                   android:layout_width="match_parent"
                   android:layout_height="wrap_content"
                   android:orientation="vertical"
                   android:paddingLeft="20dp"
                   android:paddingTop="3dp"
                   android:paddingRight="20dp">
                   <LinearLayout
                       android:layout_width="match_parent"
                       android:layout_height="wrap_content"
                       android:orientation="horizontal">
                       <ImageView
                           android:id="@+id/ad_app_icon"
                           android:layout_width="40dp"
                           android:layout_height="40dp"
                           android:adjustViewBounds="true"
                           android:paddingEnd="5dp"
                           android:paddingRight="5dp"
                           android:paddingBottom="5dp" />
                       <LinearLayout
                           android:layout_width="match_parent"
                           android:layout_height="wrap_content"
                           android:orientation="vertical">
                           <TextView
                               android:id="@+id/ad_headline"
                               android:layout_width="match_parent"
                               android:layout_height="wrap_content"
                               android:textColor="#0000FF"
                               android:textSize="16sp"
                               android:textStyle="bold" />
                       </LinearLayout>
                   </LinearLayout>
                   <LinearLayout
                       android:layout_width="match_parent"
                       android:layout_height="wrap_content"
                       android:orientation="vertical">
                   <TextView
                       android:id="@+id/ad_body"
                       android:layout_width="wrap_content"
                       android:layout_height="wrap_content"
                       android:layout_marginEnd="20dp"
                       android:layout_marginRight="20dp"
                       android:textSize="12sp" />
                   <com.google.android.gms.ads.nativead.MediaView
                       android:id="@+id/ad_media"
                       android:layout_width="250dp"
                       android:layout_height="175dp"
                       android:layout_gravity="center_horizontal"
                       android:layout_marginTop="5dp" />
                   <LinearLayout
                       android:layout_width="wrap_content"
                       android:layout_height="wrap_content"
                       android:layout_gravity="end"
                       android:orientation="horizontal"
                       android:paddingTop="10dp"
                       android:paddingBottom="10dp">
                           <Button
                               android:id="@+id/ad_call_to_action"
                               android:layout_width="wrap_content"
                               android:layout_height="wrap_content"
                               android:gravity="center"
                               android:textSize="12sp" />
                       </LinearLayout>
                   </LinearLayout>
               </LinearLayout>
           </LinearLayout>
   </com.google.android.gms.ads.nativead.NativeAdView>

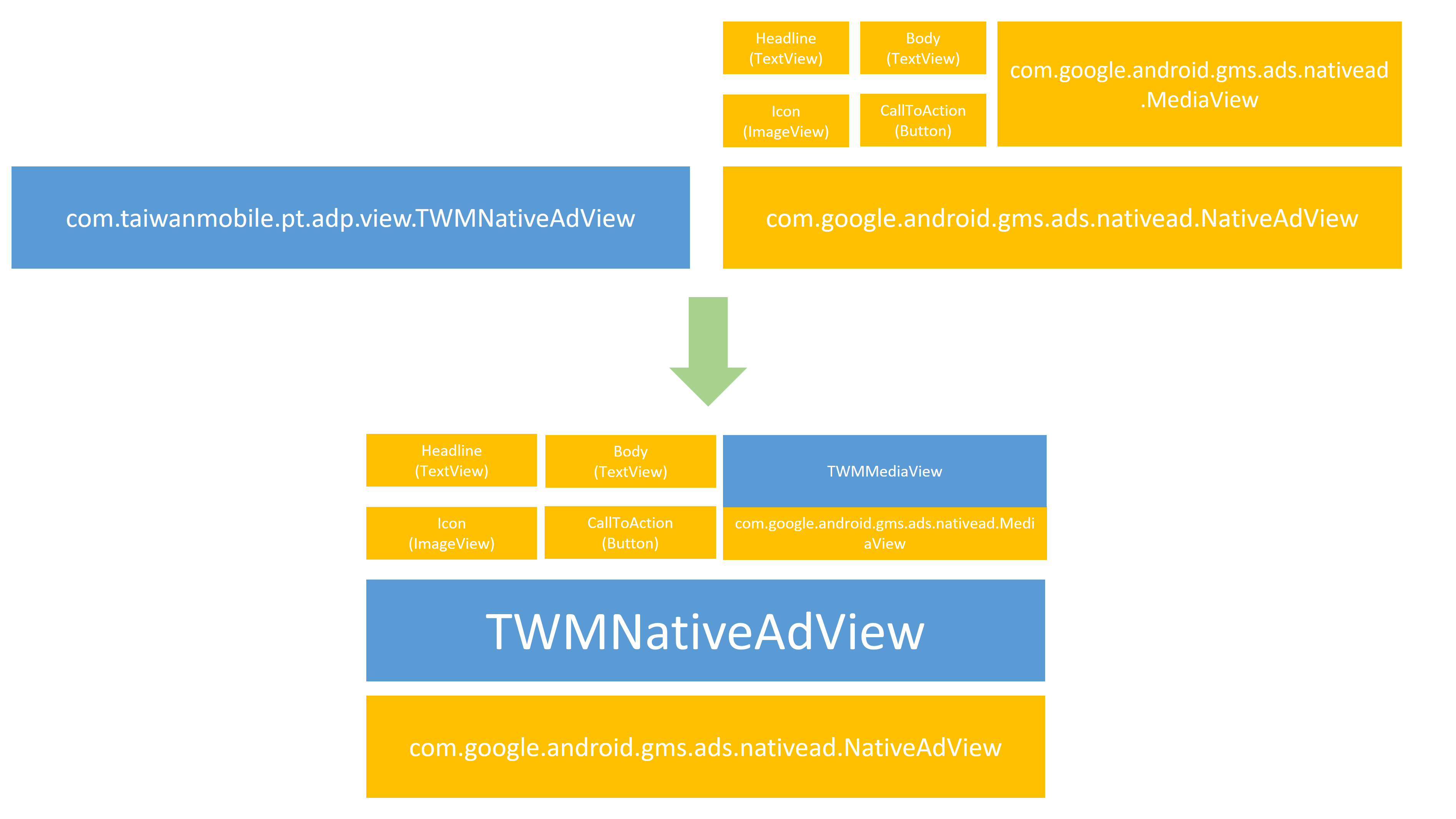

4. 使用AdMob AdLoader載入原生廣告

當AdLoader取得原生廣告時, 產出(inflate)原生廣告佈局native_ad.xml並進行NativeAdView物件填充(population), 詳情可參考下方populateNativeAdView()

NativeAdView填充下列屬性: headline, body, call to action, icon, mediaView等資訊

填充後將native_ad.xml物件加入nativeContainer

    override fun onCreate(savedInstanceState: Bundle?) {

        super.onCreate(savedInstanceState)

        binding = ActivityNativeBinding.inflate(layoutInflater)

        val view = binding.root

        setContentView(view)



        val args = intent.extras

        args?.let {

            val adUnitId = args.getString(MainActivity.KEY_ADUNITID) ?: ""

            val adLoader = AdLoader.Builder(this, adUnitId)

                .forNativeAd { ad: NativeAd ->

                    nativeAd = ad

                    val adLayout = NativeAdBinding.inflate(layoutInflater)

                    populateNativeAdView(ad, adLayout)

                    binding.nativeContainer.removeAllViews()

                    binding.nativeContainer.addView(adLayout.root)



                    // If this callback occurs after the activity is destroyed, you

                    // must call destroy and return or you may get a memory leak.

                    // Note `isDestroyed` is a method on Activity.



                    if (isDestroyed) {

                        ad.destroy()

                        return@forNativeAd

                    }

                }

                .withAdListener(object : AdListener() {

                    override fun onAdFailedToLoad(adError: LoadAdError) {

                        Toast.makeText(this@NativeActivity, "onAdFailedToLoad", Toast.LENGTH_LONG)

                            .show()

                    }



                    override fun onAdClicked() {

                        super.onAdClicked()

                        Toast.makeText(this@NativeActivity, "onAdClicked", Toast.LENGTH_LONG)

                            .show()

                    }



                    override fun onAdImpression() {

                        super.onAdImpression()

                        Toast.makeText(this@NativeActivity, "onAdImpression", Toast.LENGTH_LONG)

                            .show()

                    }

                })

                .withNativeAdOptions(

                    NativeAdOptions.Builder()

                        // Methods in the NativeAdOptions.Builder class can be

                        // used here to specify individual options settings.

                        .build()

                )

                .build()

            adLoader.loadAd(AdRequest.Builder().build())

        }

    }



    /**

     * Populates a [NativeAdView] object with data from a given [NativeAd].

     *

     * @param nativeAd the object containing the ad's assets

     * @param viewBinding the view binding object [NativeAdBinding] contains the [NativeAdView]

     */

    private fun populateNativeAdView(nativeAd: NativeAd, viewBinding: NativeAdBinding) {



        // fetch NativeAdView from NativeAdBinding

        val nativeAdView: NativeAdView = viewBinding.root



        // headline

        if (nativeAd.headline == null) {

            viewBinding.adHeadline.visibility = View.INVISIBLE

        } else {

            viewBinding.adHeadline.visibility = View.VISIBLE

            viewBinding.adHeadline.text = nativeAd.headline

            nativeAdView.headlineView = viewBinding.adHeadline

        }

        // body

        if (nativeAd.body == null) {

            viewBinding.adBody.visibility = View.INVISIBLE

        } else {

            viewBinding.adBody.visibility = View.VISIBLE

            viewBinding.adBody.text = nativeAd.body

            nativeAdView.bodyView = viewBinding.adBody

        }

        // call to action

        if (nativeAd.callToAction == null) {

            viewBinding.adCallToAction.visibility = View.INVISIBLE

        } else {

            viewBinding.adCallToAction.visibility = View.VISIBLE

            viewBinding.adCallToAction.text = nativeAd.callToAction

            nativeAdView.callToActionView = viewBinding.adCallToAction

        }

        // icon

        if (nativeAd.icon == null) {

            viewBinding.adAppIcon.visibility = View.GONE

        } else {

            nativeAd.icon?.drawable?.let {

                viewBinding.adAppIcon.setImageDrawable(it)

                viewBinding.adAppIcon.visibility = View.VISIBLE

                nativeAdView.iconView = viewBinding.adAppIcon

            }

        }

        // mediaView

        nativeAdView.mediaView = viewBinding.adMedia

        nativeAdView.setNativeAd(nativeAd)

    }

5. 設計架構圖

- 藍色為TAmedia SDK原生廣告類別, 黃色為AdMob SDK原生廣告類別

- 開發者僅需在native_ad.xml使用AdMob SDK, 其他則由TAmedia mediation實作負責

- 佈局中如果有發現AdMob SDK MediaView, TAmedia SDK TWMMediaView則會主動覆蓋至上面, 負責顯示影音廣告

AdMob SDK 21.5.0 設定調整

中介程式改為TAmediaCustomEvent (Adapter)

將CustomEventBanner / CustomEventInterstitial / CustomEventNative改為TAmediaCustomEvent

Banner / Interstitial / Native等中介實作皆在TAmediaCustomEvent

AdMob SDK 22.2.0 設定調整

• 支援AdMob SDK 22.2.0
• 支援Google Ad Manager
  • Android Integeration with Ad Manager Mediation

回首頁
