Android Integeration with Ad Manager Mediation

詳細範例

Ad Manager 22.2.0 Mediation Project (包含橫幅、插頁、原生廣告)。

新增廣告單元 / 收益群組

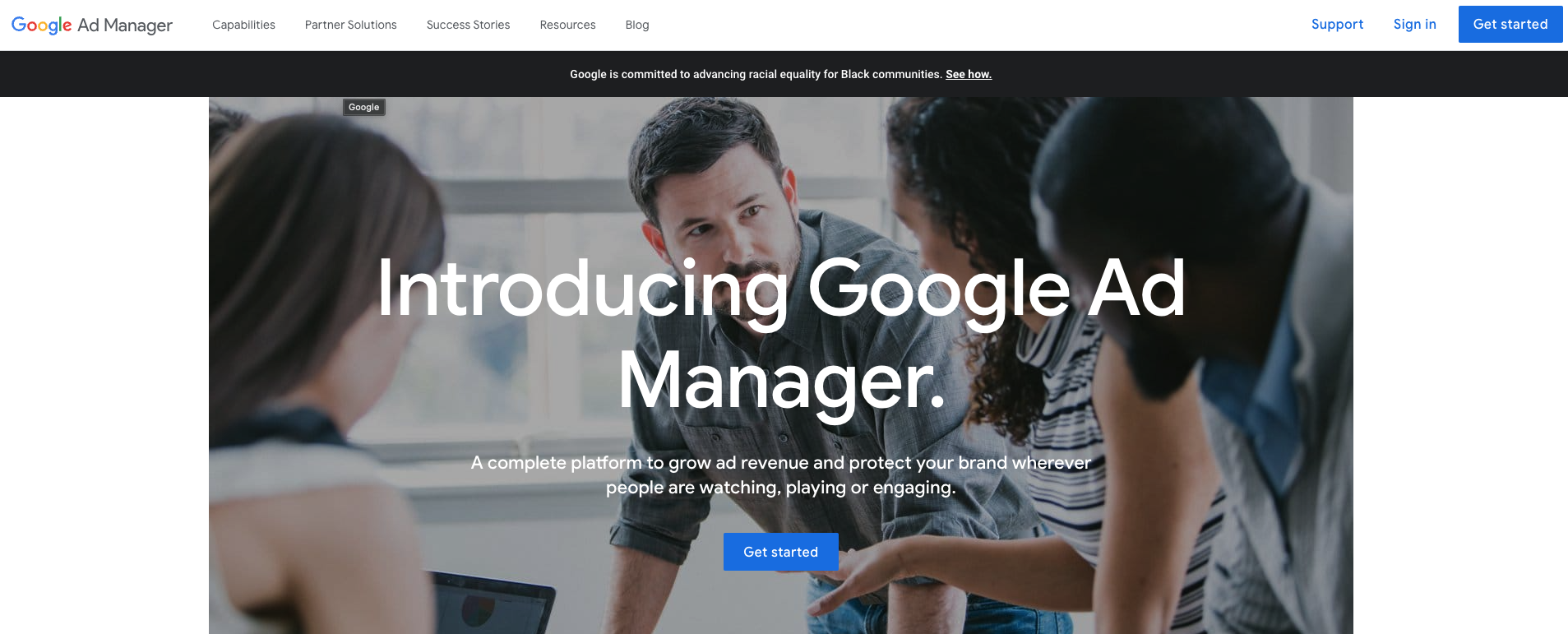

登入Google Ad Manager

https://admanager.google.com/home/

橫幅(Banner)

• 進入 Ad Manager 網頁選擇 應用單元 -> 新增廣告單元

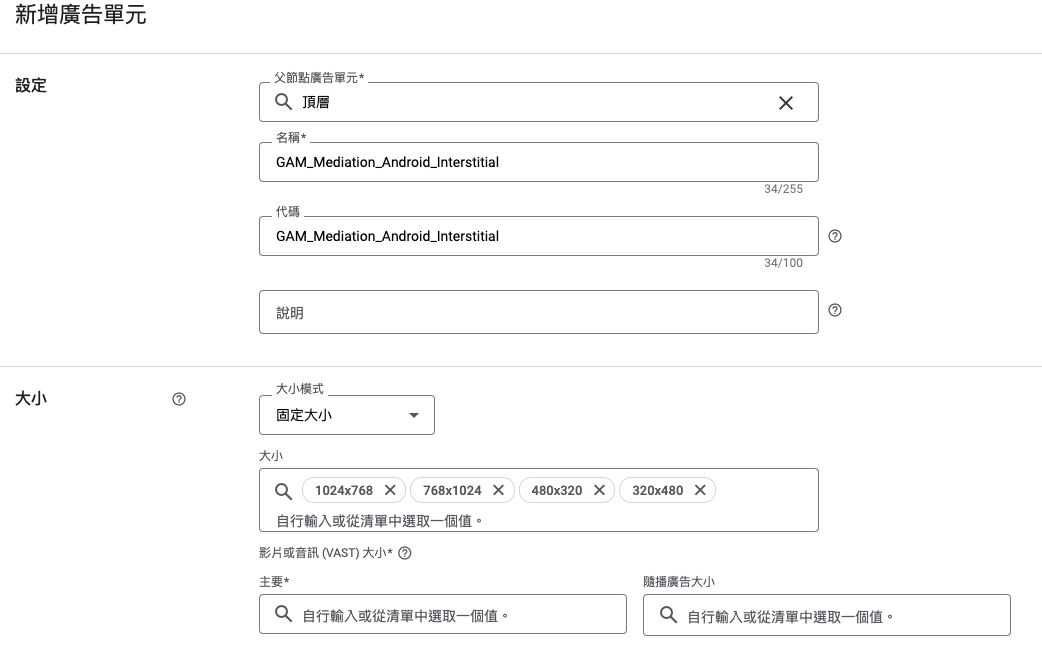

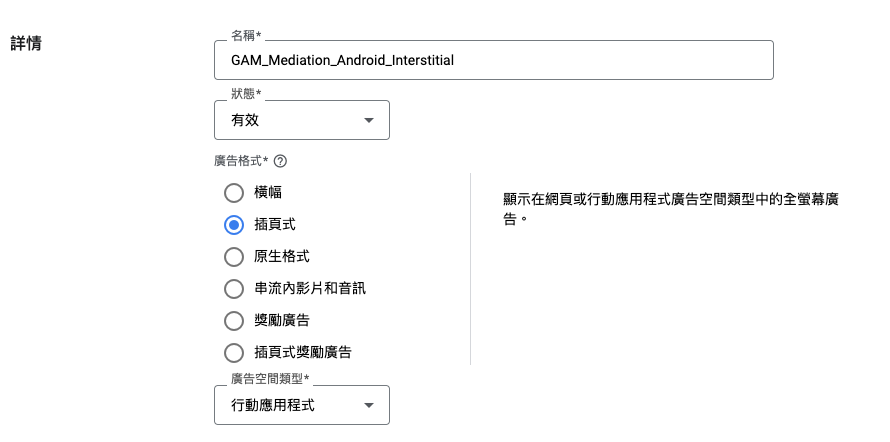

插頁(Interstitial)

• 進入 Ad Manager 網頁選擇 應用單元 -> 新增廣告單元

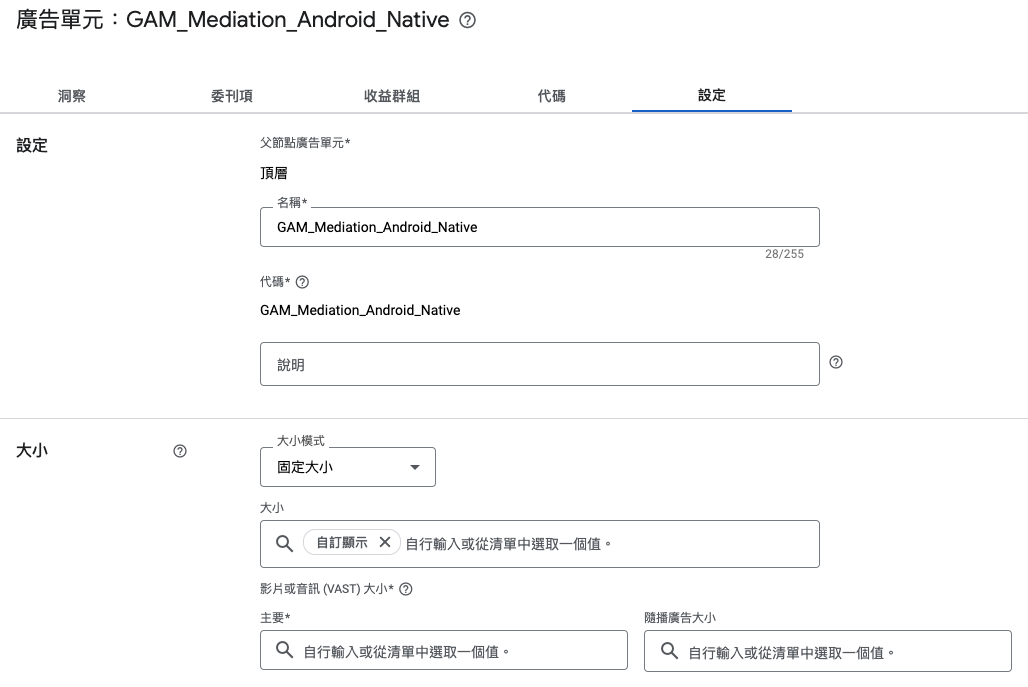

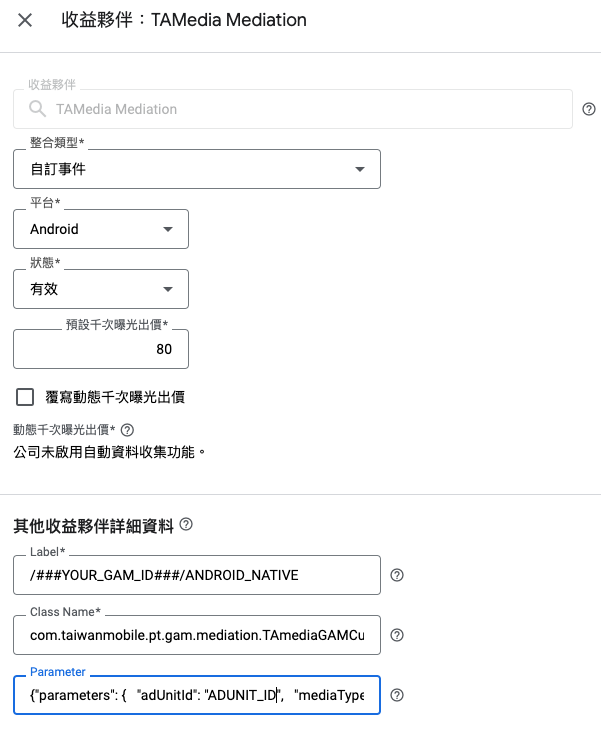

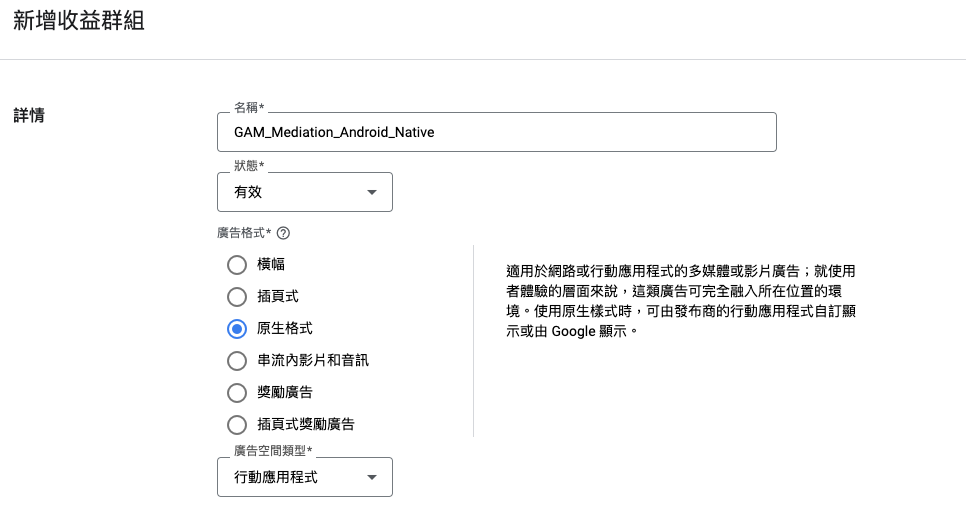

原生(Native)

• 進入 Ad Manager 網頁選擇 應用單元 -> 新增廣告單元

• MediaView顯示影音
  • adUnitId: TAmedia廣告版位
  • mediaType: VIDEO
  • videoStartUnmuted: 影片聲音預設開關, true: 有聲音, false: 無聲音
  • videoCustomControlRequest: 影片上是否要顯示秒數, 靜音, 前往瀏覽等UI按鈕, true: 不顯示, false: 顯示

{

  "parameters": {

    "adUnitId": "ADUNIT_ID",

    "mediaType": "VIDEO",

    "videoStartUnmuted":true,

    "videoCustomControlRequest":true

  }

}

• MediaView顯示大圖(1200x628)
  • adUnitId: TAmedia廣告版位
  • mediaType: BIG_IMAGE

{

  "parameters": {

    "adUnitId": "ADUNIT_ID",

    "mediaType": "BIG_IMAGE"

  }

}

• MediaView顯示小圖(960x640)
  • adUnitId: TAmedia廣告版位
  • mediaType: SMALL_IMAGE

{

  "parameters": {

    "adUnitId": "ADUNIT_ID",

    "mediaType": "SMALL_IMAGE"

  }

}

Gradle設定

// =======================================================================//

// Google Play Service - ADS

// =======================================================================//

implementation 'com.google.android.gms:play-services-ads:22.2.0'



// =======================================================================//

// MADP SDK

// =======================================================================//

implementation fileTree(include: ['*.aar'], dir: 'libs')



// =======================================================================//

// MADP SDK dependencies

// =======================================================================//

// kotlin

implementation 'org.jetbrains.kotlin:kotlin-stdlib-jdk8:1.8.21'

implementation 'org.jetbrains.kotlinx:kotlinx-coroutines-android:1.6.4'

// retrofit

implementation 'com.squareup.retrofit2:retrofit:2.9.0'

implementation 'com.squareup.retrofit2:converter-gson:2.9.0'

implementation 'com.squareup.retrofit2:converter-scalars:2.9.0'

// advertising ID

implementation 'com.google.android.gms:play-services-ads-identifier:18.0.1'

// appset

implementation 'com.google.android.gms:play-services-appset:16.0.2'

// gson

implementation 'com.google.code.gson:gson:2.10.1'

// lifecycle

def lifecycle_version = "2.6.1"

implementation "androidx.lifecycle:lifecycle-viewmodel-ktx:$lifecycle_version"

implementation "androidx.lifecycle:lifecycle-livedata-ktx:$lifecycle_version"

implementation "androidx.lifecycle:lifecycle-runtime-ktx:$lifecycle_version"

implementation "androidx.lifecycle:lifecycle-viewmodel-savedstate:$lifecycle_version"

implementation "androidx.lifecycle:lifecycle-common-java8:$lifecycle_version"

implementation "androidx.lifecycle:lifecycle-common-java8:$lifecycle_version"

implementation "androidx.lifecycle:lifecycle-service:$lifecycle_version"

implementation "androidx.lifecycle:lifecycle-process:$lifecycle_version"

implementation "androidx.lifecycle:lifecycle-reactivestreams-ktx:$lifecycle_version"

// viewModels

implementation 'androidx.activity:activity-ktx:1.7.2'

// EncryptedSharedPreferences

implementation 'androidx.security:security-crypto:1.1.0-alpha06'

Proguard設定

避免TAmedia Mediation Class Name被被混淆導致Google Ad Manager無法找到中介實作, 請將下列內容加入 proguard-rules.pro

-keep class com.taiwanmobile.pt.adp.mediation.** {

    public protected <fields>;

    public protected <methods>;

}

-keep class com.taiwanmobile.pt.gam.mediation.** {

    public protected <fields>;

    public protected <methods>;

}

-dontwarn com.google.errorprone.annotations.**

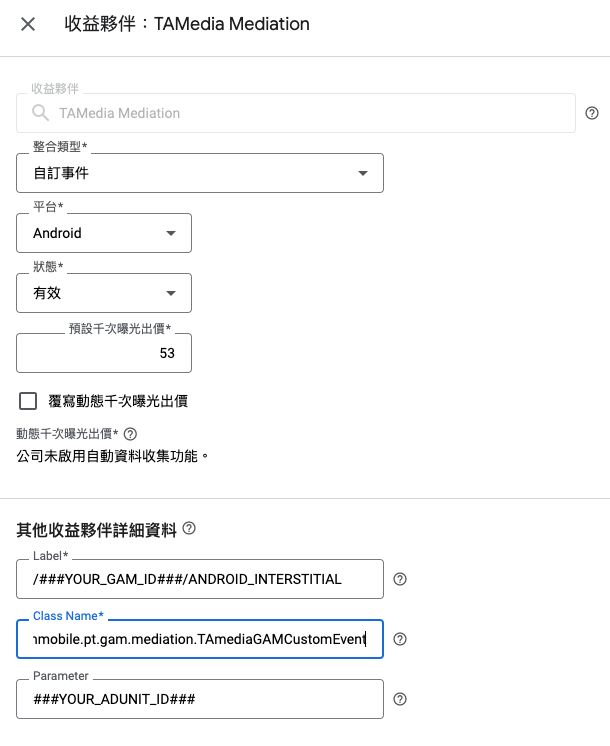

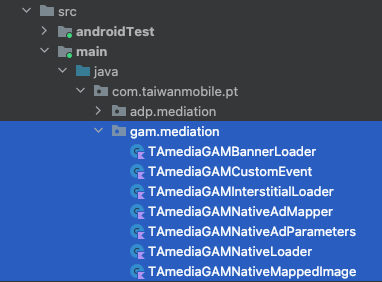

TAmedia中介程式

• 請將com.taiwanmobile.pt.gam.mediation程式碼加入專案, 請確認Google Ad Manager收益群組設定的Class Name與下列一致
• com.taiwanmobile.pt.gam.mediation.TAmediaGAMCustomEvent

*

請確認TAmedia SDK 在libs目錄

*

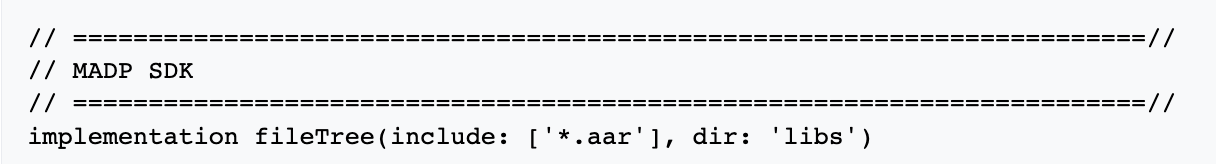

請再次檢查Gradle設定有參考其TAmedia SDK aar檔案

橫幅(Banner)

請參考TAmediaGAMCustomEvent.loadBannerAd(), 此為橫幅中介程式進入點

    override fun loadBannerAd(

        configuration: MediationBannerAdConfiguration,

        callback: MediationAdLoadCallback<MediationBannerAd, MediationBannerAdCallback>

    ) {

        bannerLoader = TAmediaGAMBannerLoader(configuration, callback)

        bannerLoader?.loadAd()

    }

插頁(Interstitial)

請參考TAmediaGAMCustomEvent.loadInterstitialAd(), 此為插頁中介程式進入點

    override fun loadInterstitialAd(

        configuration: MediationInterstitialAdConfiguration,

        callback: MediationAdLoadCallback<MediationInterstitialAd, MediationInterstitialAdCallback>

    ) {

        interstitialLoader = TAmediaGAMInterstitialLoader(configuration, callback)

        interstitialLoader?.loadAd()

    }

原生(Native)

請參考TAmediaGAMCustomEvent.loadNativeAd(), 此為原生中介程式進入點

   override fun loadNativeAd(

        configuration: MediationNativeAdConfiguration,

        callback: MediationAdLoadCallback<UnifiedNativeAdMapper, MediationNativeAdCallback>

    ) {

        nativeLoader = TAmediaGAMNativeLoader(configuration, callback)

        nativeLoader?.loadAd()

    }

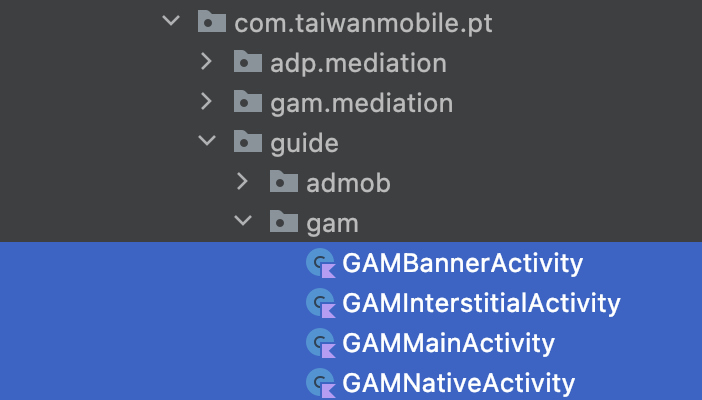

開發者程式

請參考 com.taiwanmobile.pt.guide.gam 相關程式碼

=== 橫幅(Banner) ===

請參考GAMBannerActivity.kt, 使用AdManagerAdView載入AdManagerAdRequest, 進行廣告請求

    adUnitId?.let {

        val request = AdManagerAdRequest.Builder().build()

        adManagerAdView = AdManagerAdView(this@GAMBannerActivity)

        adManagerAdView?.adUnitId = it

        adManagerAdView?.setAdSizes(adSize)

        adManagerAdView?.adListener = object: AdListener() {

            override fun onAdLoaded() {}

            override fun onAdFailedToLoad(adError : LoadAdError) {}

            override fun onAdClicked() {}

            override fun onAdImpression() {}

        }

        adManagerAdView?.loadAd(request)

        // add view into layout

        binding.adContainer.addView(adManagerAdView)

    }

插頁(Interstitial)

請參考GAMInterstitialActivity.kt, 使用AdManagerInterstitialAd載入AdManagerAdRequest物件, 進行廣告請求

    adUnitId?.let {

        val adRequest = AdManagerAdRequest.Builder().build()

        AdManagerInterstitialAd.load(this, it, adRequest, object : AdManagerInterstitialAdLoadCallback() {

            override fun onAdFailedToLoad(adError: LoadAdError) {}

            override fun onAdLoaded(ad: AdManagerInterstitialAd) {

                interstitialAd = ad

                interstitialAd?.show(this@GAMInterstitialActivity)

            }

        })

    }

原生(Native)

請參考GAMNativeActivity.kt, 使用AdLoader.forNativeAd()載入AdManagerAdRequest物件, 進行廣告請求

    val adUnitId = args.getString(GAMMainActivity.KEY_ADUNITID) ?: ""

    val adLoader = AdLoader.Builder(this, adUnitId)

        .forNativeAd { ad: NativeAd ->

        if (isDestroyed) {

            ad.destroy()

            return@forNativeAd

        }

        nativeAd = ad

        val vb = NativeAdBinding.inflate(layoutInflater)

            populateNativeAdView(ad, vb)

            binding.nativeContainer.removeAllViews()

            binding.nativeContainer.addView(vb.root)

        }

        .withAdListener(object : AdListener() {

            override fun onAdFailedToLoad(adError: LoadAdError) {}

            override fun onAdClicked() {}

            override fun onAdImpression() {}

        })

        .withNativeAdOptions(NativeAdOptions.Builder().build())

        .build()

    adLoader.loadAd(AdManagerAdRequest.Builder().build())

請參考GAMNativeActivity.kt, 在populateNativeAdView()有填充NativeAdView實作細節

    private fun populateNativeAdView(nativeAd: NativeAd, viewBinding: NativeAdBinding) {



        // fetch NativeAdView from NativeAdBinding

        val nativeAdView: NativeAdView = viewBinding.root



        // headline

        if (nativeAd.headline == null) {

            viewBinding.adHeadline.visibility = View.INVISIBLE

        } else {

            viewBinding.adHeadline.visibility = View.VISIBLE

            viewBinding.adHeadline.text = nativeAd.headline

            nativeAdView.headlineView = viewBinding.adHeadline

        }

        // body

        if (nativeAd.body == null) {

            viewBinding.adBody.visibility = View.INVISIBLE

        } else {

            viewBinding.adBody.visibility = View.VISIBLE

            viewBinding.adBody.text = nativeAd.body

            nativeAdView.bodyView = viewBinding.adBody

        }

        // call to action

        if (nativeAd.callToAction == null) {

            viewBinding.adCallToAction.visibility = View.INVISIBLE

        } else {

            viewBinding.adCallToAction.visibility = View.VISIBLE

            viewBinding.adCallToAction.text = nativeAd.callToAction

            nativeAdView.callToActionView = viewBinding.adCallToAction

        }

        // icon

        if (nativeAd.icon == null) {

            viewBinding.adAppIcon.visibility = View.GONE

        } else {

            nativeAd.icon?.drawable?.let {

                viewBinding.adAppIcon.setImageDrawable(it)

                viewBinding.adAppIcon.visibility = View.VISIBLE

                nativeAdView.iconView = viewBinding.adAppIcon

            }

        }

        // mediaView

        nativeAdView.mediaView = viewBinding.adMedia

        nativeAdView.mediaView?.mediaContent = nativeAd.mediaContent

        nativeAdView.setNativeAd(nativeAd)

    }

請參考NativeAdBinding佈局細節, 使用NativeAdView設計原生廣告佈局, 使用MediaView顯示 影片 或 大圖 或 小圖 /p>

<com.google.android.gms.ads.nativead.NativeAdView

    xmlns:android="http://schemas.android.com/apk/res/android"

    android:layout_width="match_parent"

    android:layout_height="wrap_content"

    android:orientation="vertical">



    <ImageView

        android:id="@+id/ad_app_icon"

        android:layout_width="40dp"

        android:layout_height="40dp"

        android:adjustViewBounds="true"

        android:paddingEnd="5dp"

        android:paddingRight="5dp"

        android:paddingBottom="5dp" />



    <TextView

        android:id="@+id/ad_headline"

        android:layout_width="match_parent"

        android:layout_height="wrap_content"

        android:textColor="#0000FF"

        android:textSize="16sp"

        android:textStyle="bold" />



    <TextView

        android:id="@+id/ad_body"

        android:layout_width="wrap_content"

        android:layout_height="wrap_content"

        android:layout_marginEnd="20dp"

        android:layout_marginRight="20dp"

        android:textSize="12sp" />



    <com.google.android.gms.ads.nativead.MediaView

        android:id="@+id/ad_media"

        android:layout_width="250dp"

        android:layout_height="175dp"

        android:layout_gravity="center_horizontal"

        android:layout_marginTop="5dp" />



    <Button

        android:id="@+id/ad_call_to_action"

        android:layout_width="wrap_content"

        android:layout_height="wrap_content"

        android:gravity="center"

        android:textSize="12sp" />



</com.google.android.gms.ads.nativead.NativeAdView>

長標題 / 短標題設定, 請調整TAmediaGAMNativeAdMapper.kt實作, 將headline設為指定的標題即可

    // Mapping TWMNativeAd to AdMob Native AD resource

    // headline by longSubject

    nativeAd.nativeAdContent.longSubject?.let { headline = it }

    //nativeAd.nativeAdContent.shortSubject?.let { headline = it }

使用詳細範例

下載中介程式

下載連結

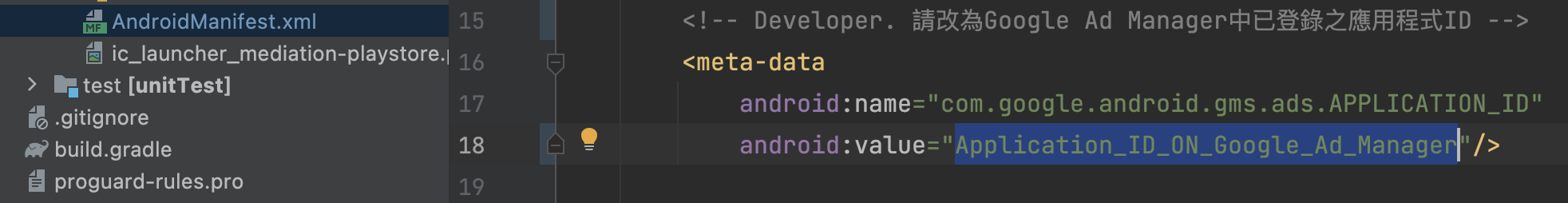

修改 - AndroidManifest.xml

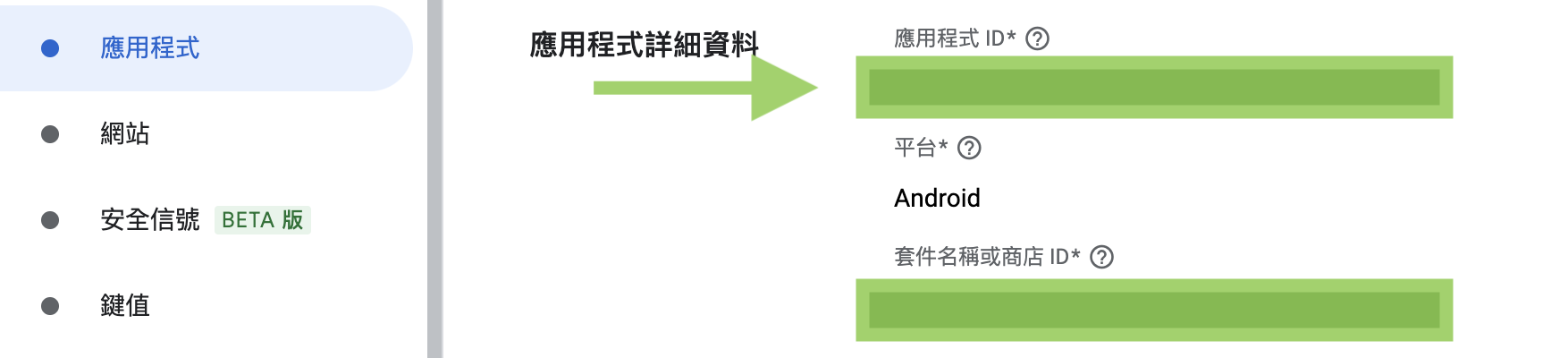

• Google Ad Manager中註冊之應用程式ID (Application ID)

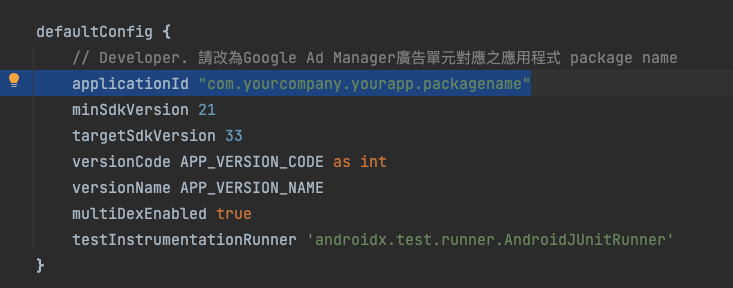

修改 - build.gradle

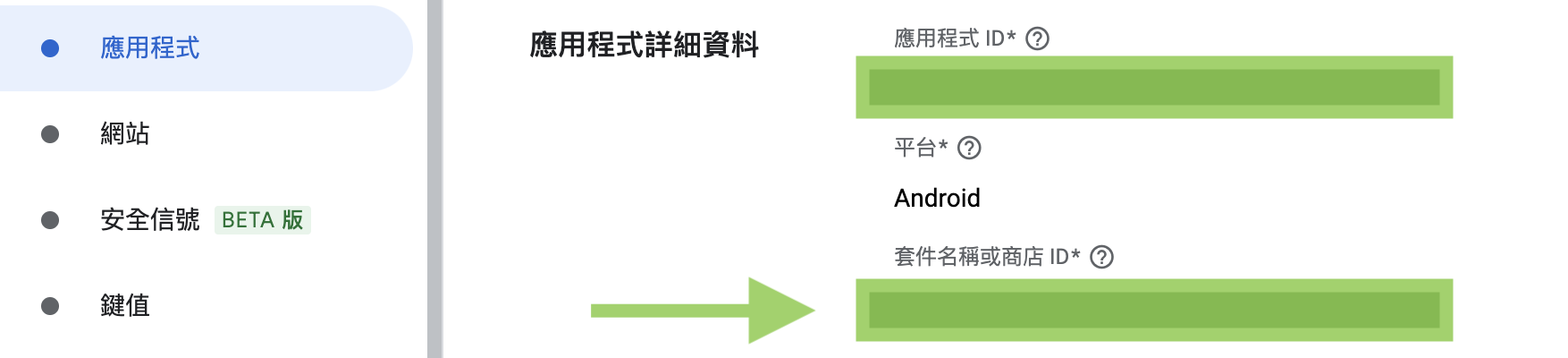

• Google Ad Manager中註冊之套件名稱

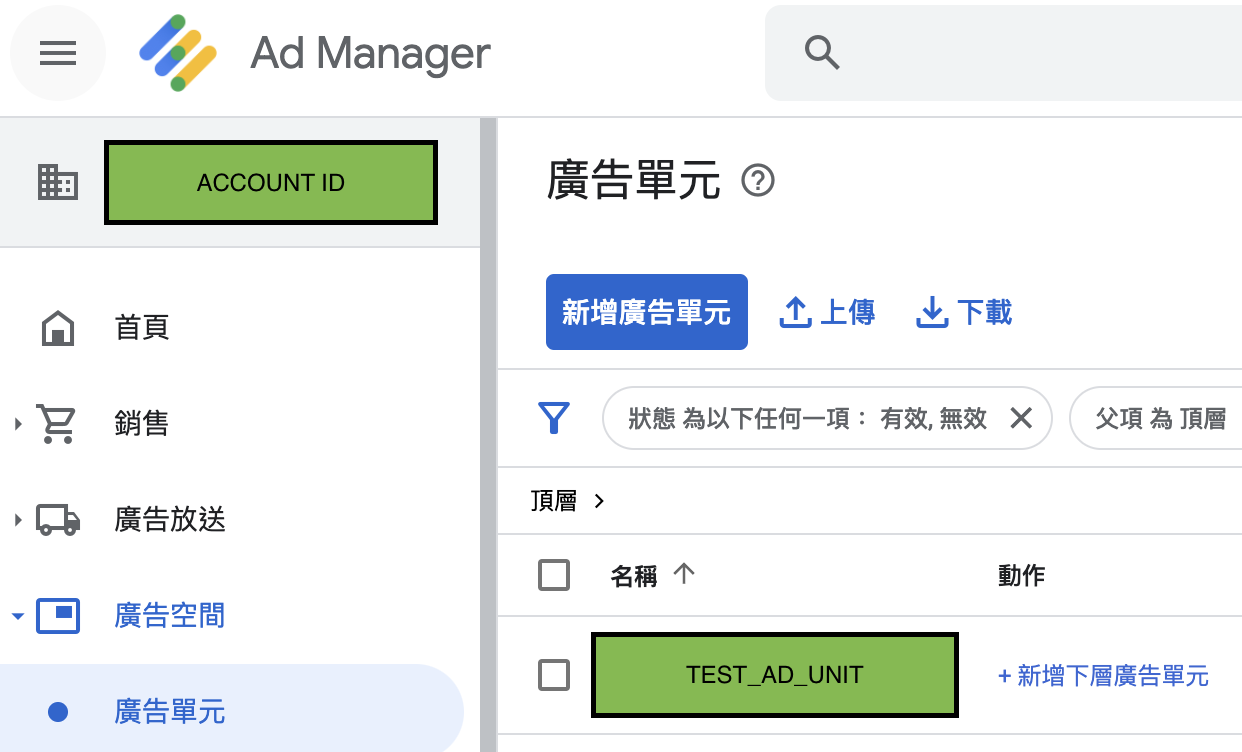

修改 - 廣告單元

• Google Ad Manager中註冊之廣告單元

*

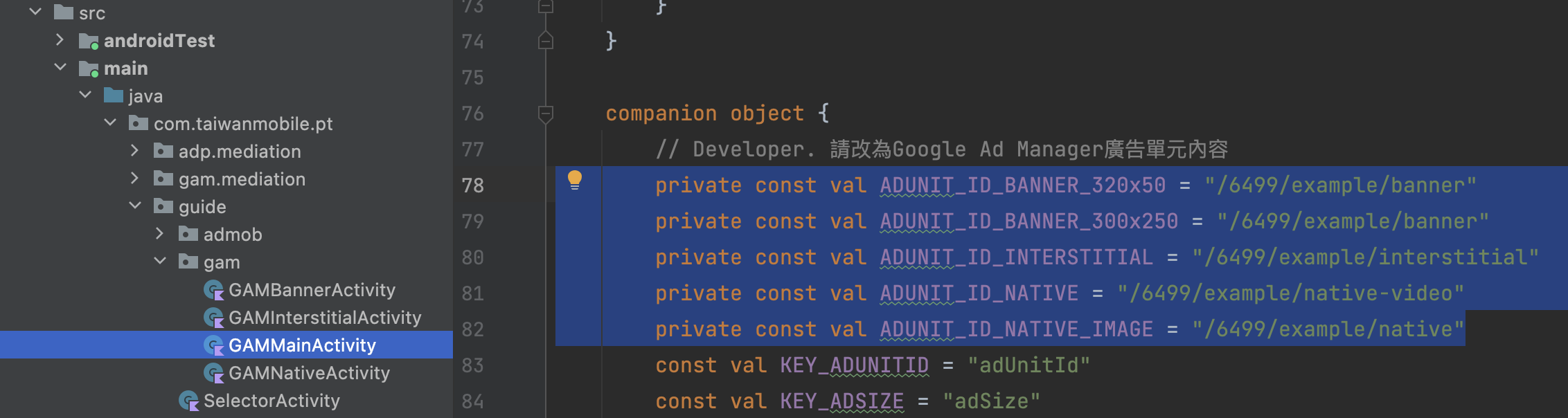

修改GAMMainActivity中定義的廣告單元 (ex. /ACCOUNT_ID/TEST_AD_UNIT )

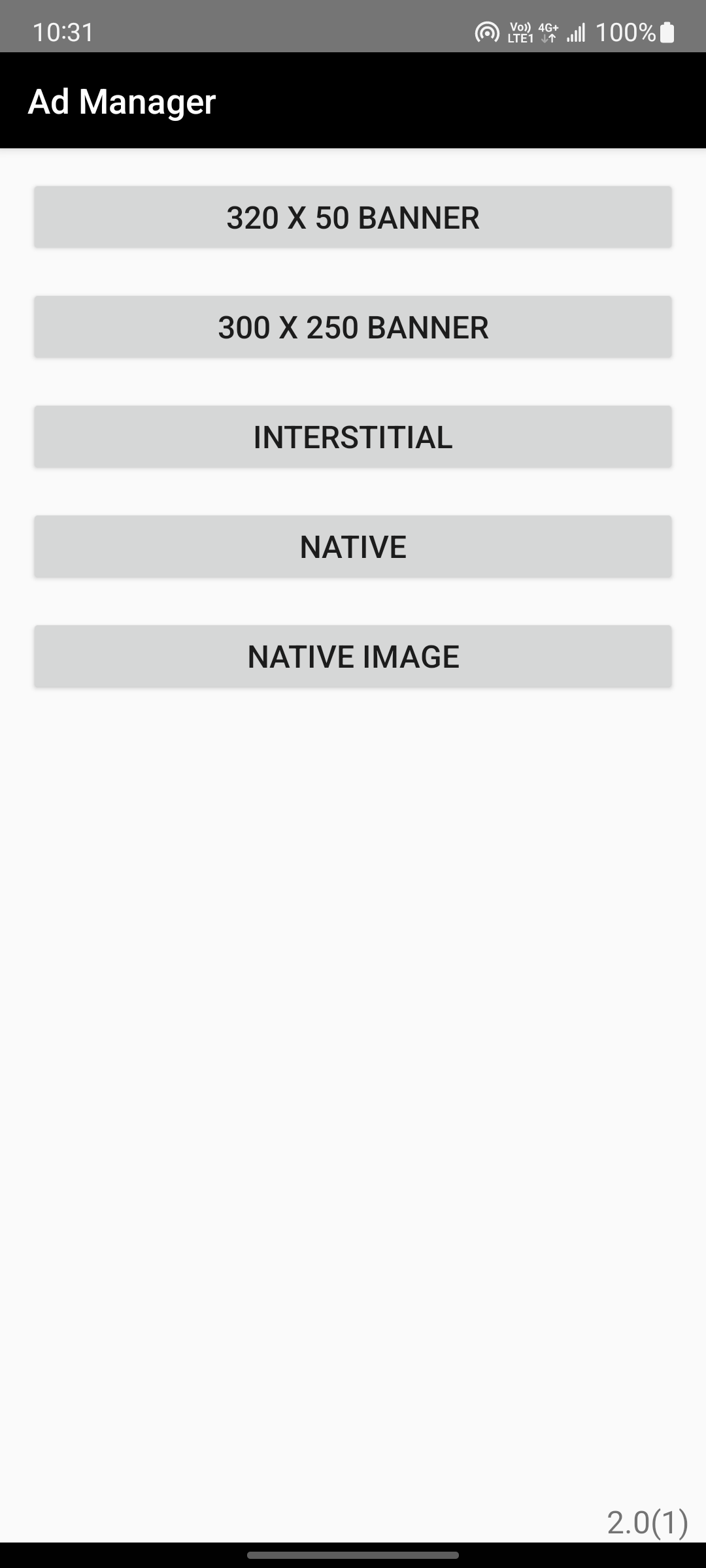

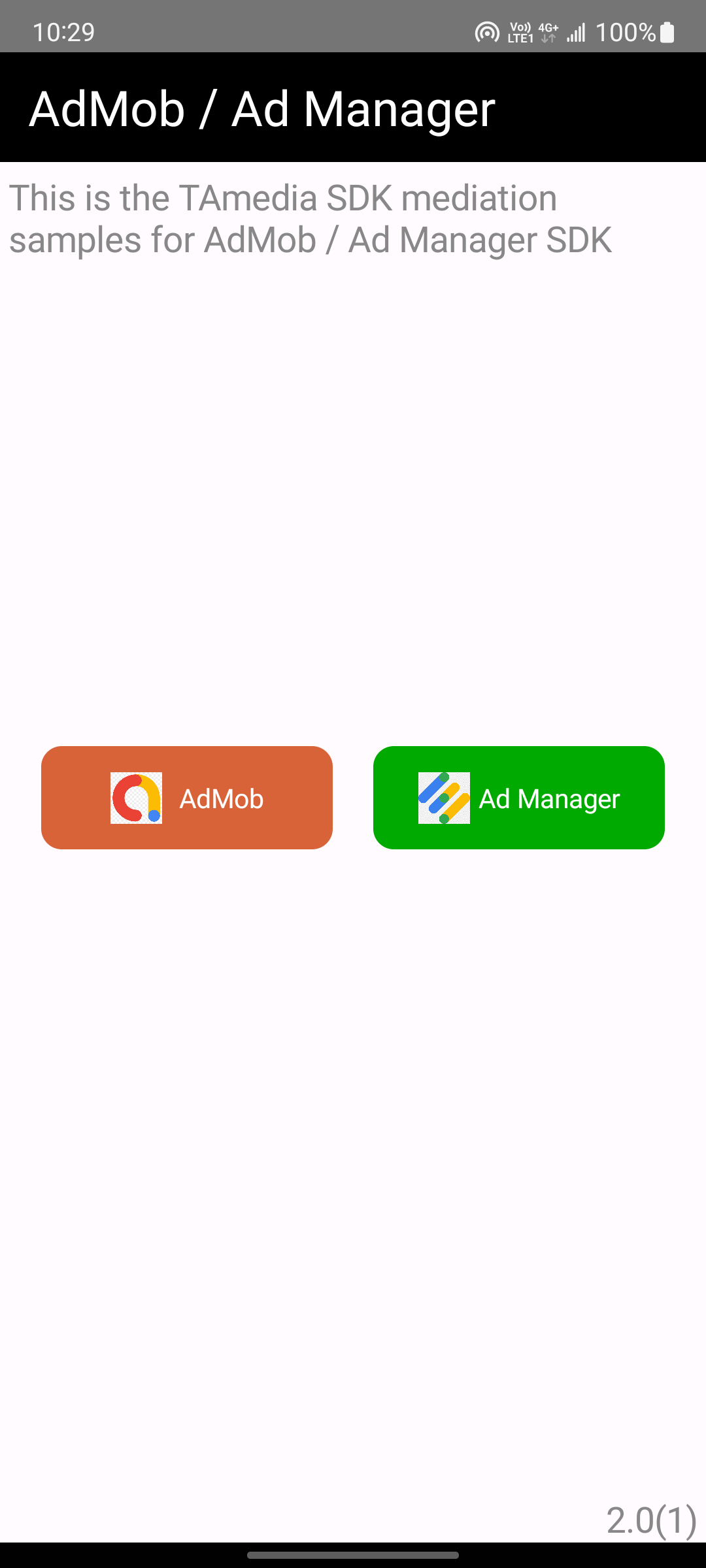

範例程式主畫面, 左邊按鈕為AdMob程式範例, 右邊按鈕為Ad Manager程式範例, 請點選右邊Ad Manager

範例程式

主選單	Ad Manager

=== 橫幅(Banner) ===

橫幅(Banner)

320x50	300x250

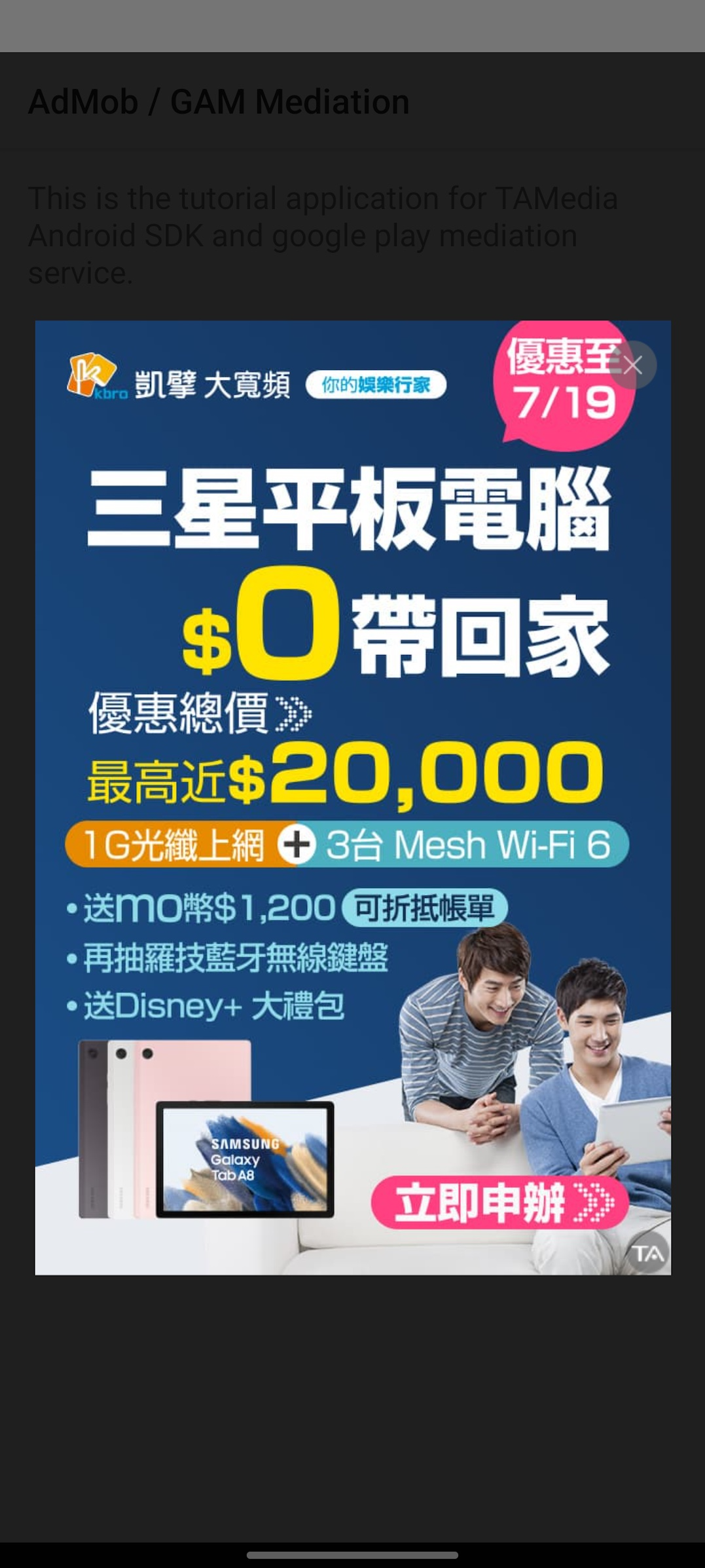

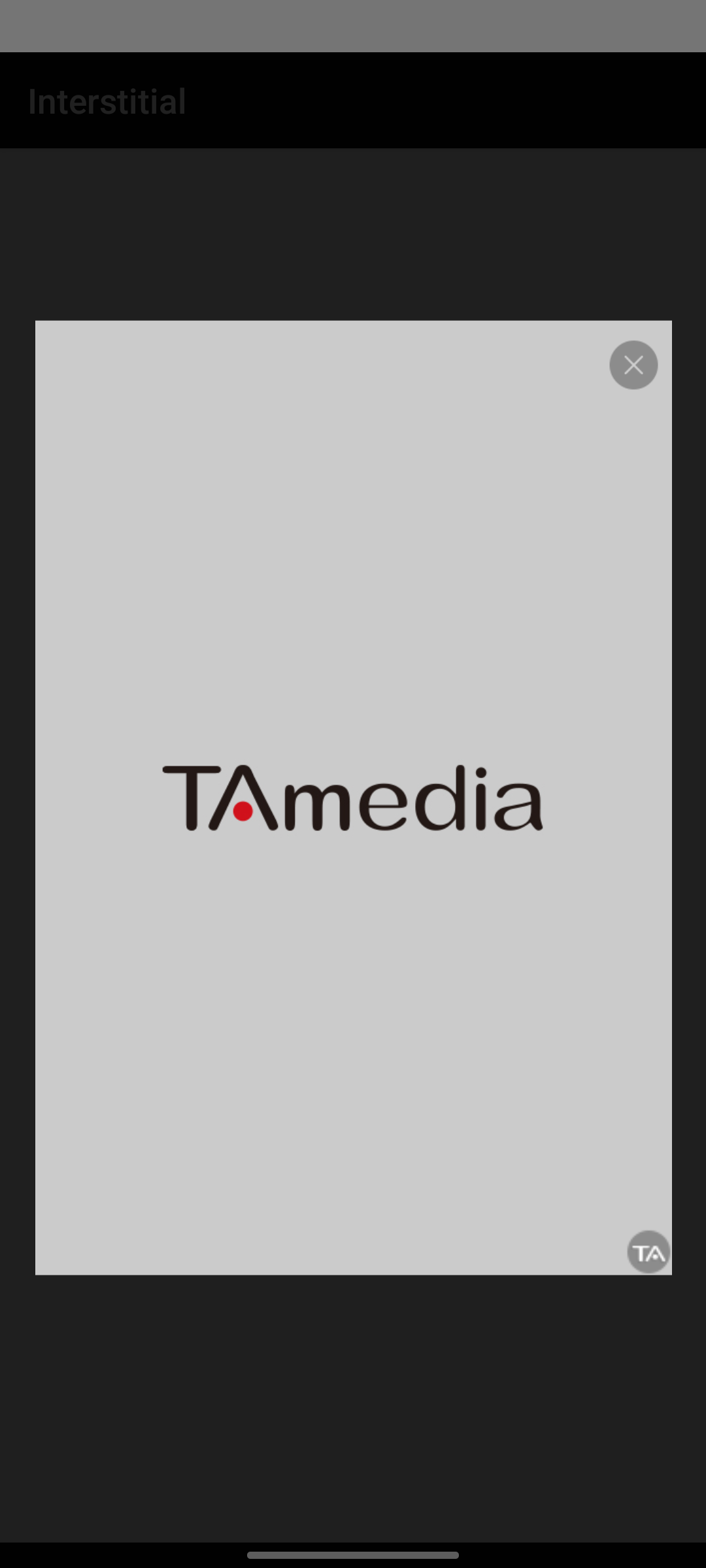

=== 插頁(Interstitial) ===

插頁(Interstitial)

Interstitial	Interstitial

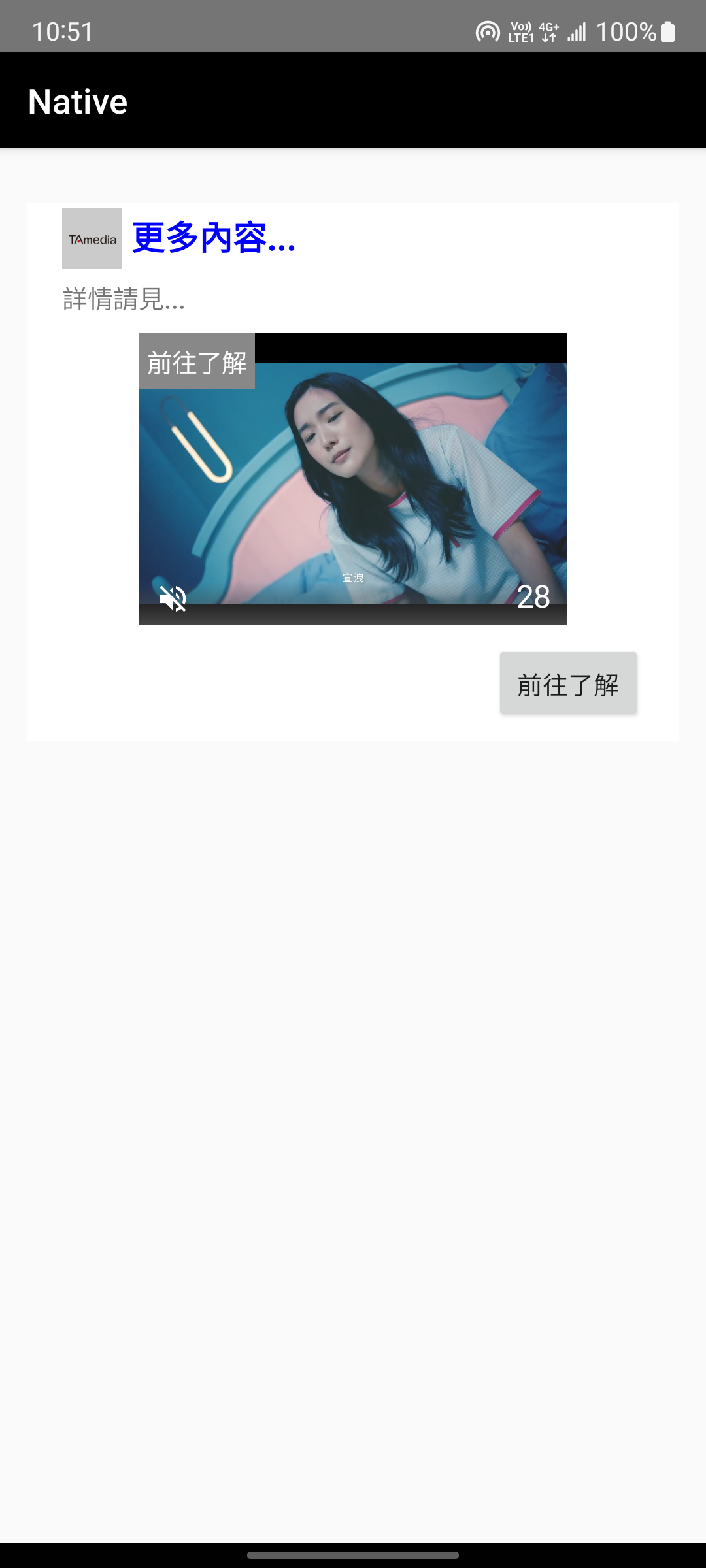

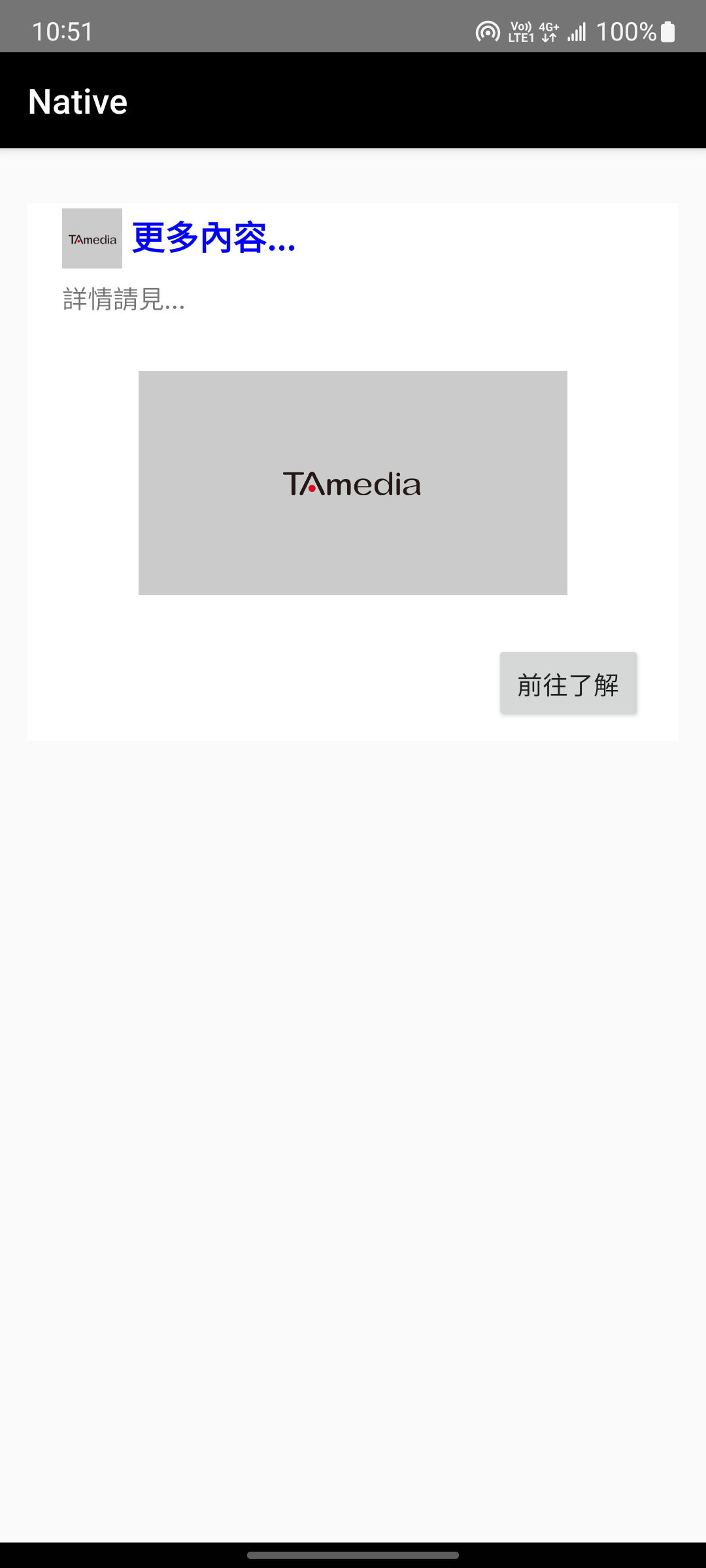

=== 原生(Native) ===

原生(Native)

NATIVE	NATIVE IMAGE
