Android InRead Ads

簡介

: InRead廣告是SDK6新增的內嵌式廣告, 您可將廣告放置在文章、列表中, 當App使用者滑動到您指定的位置時便可看見InRead廣告, 若該廣告為影音廣告, 會等待廣告出現在畫面中才會進行撥放。; InRead廣告分為下列三種:

: 大圖式: 夾雜在文章、列表中, 長寬比例為1200:627, 會根據父元件的大小縮放(Fit-Width); 300x250: 與大圖式相似, 差別為300x250並不會根據父元件的大小縮放; Anchor: 固定在螢幕下方的廣告, 廣告高度不會超過螢幕的30%

: 在投放限制方面，由於不同版本的手機支援程度不同，InRead廣告僅會投放在符合下列條件的手機：

: Android 5.0 (API 21) 以上; Android System WebView 版本43 以上

: 而在介接方式上, 大圖、300x250與橫幅廣告相似, 而Anchor與懸浮廣告相似, 下列章節將說明如何串接InRead廣告

廣告串接方式

大圖式

: 大圖式和橫幅廣告的介接方式相似, 設置XML、初始廣告物件並請求廣告

Step 1: 設置廣告的XML (以ScrollView為例)
:假設InRead廣告被夾在兩個TextView之間

<?xml version="1.0" encoding="utf-8"?>
<ScrollView xmlns:android="http://schemas.android.com/apk/res/android"
     android:layout_width="match_parent"
     android:layout_height="match_parent"
     android:layout_marginLeft="15sp"
     android:layout_marginRight="15sp"
     android:layout_marginTop="50sp">

     <LinearLayout
         android:layout_width="match_parent"
         android:layout_height="match_parent"
         android:orientation="vertical"
         android:descendantFocusability="blocksDescendants">

         <TextView
             android:layout_width="match_parent"
             android:layout_height="wrap_content"
             android:text="This is a long article. Please scroll down to find your inread ad.  ....">
         </TextView>

         <RelativeLayout
             android:id="@+id/inread_ad_container"
             android:layout_width="match_parent"
             android:layout_height="wrap_content"
             android:gravity="center_horizontal">
         </RelativeLayout>

         <TextView
             android:layout_width="match_parent"
             android:layout_height="wrap_content"
             android:text="This is a long article. Please scroll up to find your inread ad.  ....">
         </TextView>

     </LinearLayout>

</ScrollView>

Step 2: 廣告初始設置
:您必須依序輸入Activity、廣告大小(TWMAdSize)、InRead大圖式版位ID以初始化InRead物件, 並且設置Listener偵聽廣告的Callback

: 重要! 請務必在onResume、onPause和onDestroy分別加上resume、pause和destroy函式, 避免廣告發生無法預期的問題

public class MainActivity extends Activity{
    private RelativeLayout adContainer = null;
    private TWMInReadAdRect rectView = null;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
       super.onCreate(savedInstanceState);
       setContentView(R.layout.activity_main);
       adContainer = (RelativeLayout) findViewById(R.id.inread_ad_container);

       // Init InRead Object
       rectView = new TWMInReadAdRect(MainActivity.this,
             TWMAdSize.IN_READ_1200X627, "<TAMedia_InRead_AdUnitId>");

       // Set listener for inread.
       rectView.setAdListener(adListener);

       // Add inread into container.
       adContainer.addView(rectView);
    }

    @Override
    protected void onResume() {
       super.onResume();
       if (rectView != null) {
           rectView.resume();
       }
    }

    @Override
    protected void onPause() {
       if (rectView != null) {
           rectView.pause();
       }
       super.onPause();
    }

    @Override
    protected void onDestroy() {
       if (rectView != null) {
           rectView.destroy();
       }
       super.onDestroy();
    }

    private TWMAdViewListener adListener = new TWMAdViewListener() {
        @Override
        public void onReceiveAd(TWMAd twmAd) {
            // The callback is trigger when ad load successfully.
        }

        @Override
        public void onFailedToReceiveAd(TWMAd twmAd, TWMAdRequest.ErrorCode errorCode) {
            // The callback is trigger when ad load fail.
        }

        @Override
        public void onPresentScreen(TWMAd twmAd) {
            // The callback is triggered when user has clicked ad.
        }

        @Override
        public void onDismissScreen(TWMAd twmAd) {
            // The callback is triggered when user has returned to the app after clicking ad.
        }

        @Override
        public void onLeaveApplication(TWMAd twmAd) {
            // The callback would be trigger when user has left the app.
        }
    };

}

Step 3: 請求廣告
:在您需要的地方呼叫loadAd以進行廣告請求

// Request inread from TAMedia.
if (rectView != null) {
rectView.loadAd(new TWMAdRequest());
}

:(Optional) 在請求廣告前，可以透過TWMAdRequest設置使用者生日，讓您的APP獲得更多元的廣告內容

使用Date	使用Calendar
`TWMAdRequest request = new TWMAdRequest();` `try {` `//定義好時間字串的格式` `SimpleDateFormat sdf = new SimpleDateFormat("yyyy/MM/dd", Locale.getDefault());` `//將字串轉成Date型` `Date birthDate = sdf.parse("1992/01/01");` `// 將生日加入request` `request.setBirthday(birthDate);` `}catch (Exception e) {}` `// 透過TWMAdRequest載入廣告` `rectView.loadAd(request);`	`// 創建Calerdar並設定生日 (注意! 月份的編號是由0至11)` `Calendar birthDate = Calendar.getInstance();` `// 設定生日為1992/01/01` `birthDate.set(1992, 0, 1);` `// 將生日加入request` `TWMAdRequest request = new TWMAdRequest();` `request.setBirthday(birthDate);` `// 透過TWMAdRequest載入廣告` `rectView.loadAd(request);`

使用Date

使用Calendar

TWMAdRequest request = new TWMAdRequest();
try {
   //定義好時間字串的格式
   SimpleDateFormat sdf = new SimpleDateFormat("yyyy/MM/dd", Locale.getDefault());
   //將字串轉成Date型
   Date birthDate = sdf.parse("1992/01/01");
   // 將生日加入request
   request.setBirthday(birthDate);
}catch (Exception e) {}

// 透過TWMAdRequest載入廣告
rectView.loadAd(request);

// 創建Calerdar並設定生日 (注意! 月份的編號是由0至11)
Calendar birthDate = Calendar.getInstance();
// 設定生日為1992/01/01
birthDate.set(1992, 0, 1);

// 將生日加入request
TWMAdRequest request = new TWMAdRequest();
request.setBirthday(birthDate);

// 透過TWMAdRequest載入廣告
rectView.loadAd(request);

===300 x 250 ===

: 介接方式上基本上與大圖式相同, 差別僅是初始InRead物件時, TWMAdSize必須設置為IAB_MRECT

Step 1: 設置廣告的XML (以ScrollView為例)
:此部分設置與大圖式相同, 請參考大圖式 Step 1

Step 2: 廣告初始設置
:您必須依序輸入Activity、廣告大小(TWMAdSize)、InRead 300x250版位ID以初始化InRead物件, 並且設置Listener偵聽廣告的Callback

: 重要! 請務必在onResume、onPause和onDestroy分別加上resume、pause和destroy函式, 避免廣告發生無法預期的問題

public class MainActivity extends Activity{
    private RelativeLayout adContainer = null;
    private TWMInReadAdRect rectView = null;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
       super.onCreate(savedInstanceState);
       setContentView(R.layout.activity_main);
       adContainer = (RelativeLayout) findViewById(R.id.inread_ad_container);

       // Init InRead Object
       rectView = new TWMInReadAdRect(MainActivity.this,
             TWMAdSize.IAB_MRECT, "<TAMedia_InRead_AdUnitId>");

       // Set listener for inread.
       rectView.setAdListener(adListener);

       // Add inread into container.
       adContainer.addView(rectView);
    }

    @Override
    protected void onResume() {
       super.onResume();
       if (rectView != null) {
           rectView.resume();
       }
    }

    @Override
    protected void onPause() {
       if (rectView != null) {
           rectView.pause();
       }
       super.onPause();
    }

    @Override
    protected void onDestroy() {
       if (rectView != null) {
           rectView.destroy();
       }
       super.onDestroy();
    }

    private TWMAdViewListener adListener = new TWMAdViewListener() {
        @Override
        public void onReceiveAd(TWMAd twmAd) {
            // The callback is trigger when ad load successfully.
        }

        @Override
        public void onFailedToReceiveAd(TWMAd twmAd, TWMAdRequest.ErrorCode errorCode) {
            // The callback is trigger when ad load fail.
        }

        @Override
        public void onPresentScreen(TWMAd twmAd) {
            // The callback is triggered when user has clicked ad.
        }

        @Override
        public void onDismissScreen(TWMAd twmAd) {
            // The callback is triggered when user has returned to the app after clicking ad.
        }

        @Override
        public void onLeaveApplication(TWMAd twmAd) {
            // The callback would be trigger when user has left the app.
        }
    };

}

Step 3: 請求廣告
:在您需要的地方呼叫loadAd以進行廣告請求

// Request inread from TAMedia.
if (rectView != null) {
rectView.loadAd(new TWMAdRequest());
}

:(Optional) 在請求廣告前，可以透過TWMAdRequest設置使用者生日，讓您的APP獲得更多元的廣告內容

使用Date	使用Calendar
`TWMAdRequest request = new TWMAdRequest();` `try {` `//定義好時間字串的格式` `SimpleDateFormat sdf = new SimpleDateFormat("yyyy/MM/dd", Locale.getDefault());` `//將字串轉成Date型` `Date birthDate = sdf.parse("1992/01/01");` `// 將生日加入request` `request.setBirthday(birthDate);` `}catch (Exception e) {}` `// 透過TWMAdRequest載入廣告` `rectView.loadAd(request);`	`// 創建Calerdar並設定生日 (注意! 月份的編號是由0至11)` `Calendar birthDate = Calendar.getInstance();` `// 設定生日為1992/01/01` `birthDate.set(1992, 0, 1);` `// 將生日加入request` `TWMAdRequest request = new TWMAdRequest();` `request.setBirthday(birthDate);` `// 透過TWMAdRequest載入廣告` `rectView.loadAd(request);`

使用Date

使用Calendar

Anchor

: Anchor和前面兩種廣告較為不同, 不需事先設置XML或透過程式動態加入廣告View(addView), 只要直接初始InRead物件並請求廣告即可。

Step 1: 廣告初始設置
:您必須依序輸入Activity、InRead Anchor版位ID以初始化InRead物件, 並且設置Listener偵聽廣告的Callback

: 重要! 請務必在onResume、onPause和onDestroy分別加上resume、pause和destroy函式, 避免廣告發生無法預期的問題

public class MainActivity extends Activity{
    private TWMInReadAdAnchor anchorView = null;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
       super.onCreate(savedInstanceState);
       setContentView(R.layout.activity_main);

       // Init InRead Object
       anchorView = new TWMInReadAdAnchor(MainActivity.this, "<TAMedia_InRead_AdUnitId>");

       // Set listener for inread.
       anchorView.setAdListener(adListener);
    }

    @Override
    protected void onResume() {
       super.onResume();
       if (anchorView != null) {
           anchorView.resume();
       }
    }

    @Override
    protected void onPause() {
       if (anchorView != null) {
           anchorView.pause();
       }
       super.onPause();
    }

    @Override
    protected void onDestroy() {
       if (anchorView != null) {
           anchorView.destroy();
       }
       super.onDestroy();
    }

    private TWMAdViewListener adListener = new TWMAdViewListener() {
        @Override
        public void onReceiveAd(TWMAd twmAd) {
            // The callback is trigger when ad load successfully.
        }

        @Override
        public void onFailedToReceiveAd(TWMAd twmAd, TWMAdRequest.ErrorCode errorCode) {
            // The callback is trigger when ad load fail.
        }

        @Override
        public void onPresentScreen(TWMAd twmAd) {
            // The callback is triggered when user has clicked ad.
        }

        @Override
        public void onDismissScreen(TWMAd twmAd) {
            // The callback is triggered when user has returned to the app after clicking ad.
        }

        @Override
        public void onLeaveApplication(TWMAd twmAd) {
            // The callback would be trigger when user has left the app.
        }
    };

}

Step 2: 請求廣告
:在您需要的地方呼叫loadAd以進行廣告請求

// Request inread from TAMedia.
if (anchorView!= null) {
anchorView.loadAd(new TWMAdRequest());
}

:(Optional) 在請求廣告前，可以透過TWMAdRequest設置使用者生日，讓您的APP獲得更多元的廣告內容

使用Date	使用Calendar
`TWMAdRequest request = new TWMAdRequest();` `try {` `//定義好時間字串的格式` `SimpleDateFormat sdf = new SimpleDateFormat("yyyy/MM/dd", Locale.getDefault());` `//將字串轉成Date型` `Date birthDate = sdf.parse("1992/01/01");` `// 將生日加入request` `request.setBirthday(birthDate);` `}catch (Exception e) {}` `// 透過TWMAdRequest載入廣告` `anchorView.loadAd(request);`	`// 創建Calerdar並設定生日 (注意! 月份的編號是由0至11)` `Calendar birthDate = Calendar.getInstance();` `// 設定生日為1992/01/01` `birthDate.set(1992, 0, 1);` `// 將生日加入request` `TWMAdRequest request = new TWMAdRequest();` `request.setBirthday(birthDate);` `// 透過TWMAdRequest載入廣告` `anchorView.loadAd(request);`

使用Date

使用Calendar

硬體加速

: HardWare Acceleration是Android 3.0 (API 11) 加入的feature，該選項在Android 4.0 (API 14)時預設是enable。由於部分InRead廣告會投放影音廣告，請不要將此選項關閉避免影音廣告無法呈現。; 如有需要在Application Level關閉此選項，請針對要投放InRead廣告的Activity開啟即可，範例如下：

<application android:hardwareAccelerated="false" ...>
    <activity ... />
    <activity
       android:name=".InReadActivity"
       android:hardwareAccelerated="true" ... >
    </activity>
</application>

測試模式

: 若需要進行廣告投放的測試,可以透過測試模式來請求廣告, ※測試模式將不會紀錄任何的曝光以及點擊數據

: 以下以Anchor為範例, 假設您已完成 Anchor Step 1

: 請求廣告

TWMAdRequest request = new TWMAdRequest();
String deviceId = getDeviceId(getBaseContext());
request.addTestDevice(deviceId); // 加入測試的手機Id
anchorView.loadAd(request);

: 實作函式以取得Device Id

private String getDeviceId(final Context context) {
     String deviceId = null;
     try {
             deviceId = android.provider.Settings.Secure.getString(
                             context.getContentResolver(), Secure.ANDROID_ID);
             if (deviceId!= null) {
                return convertToMD5ID(deviceId);
             }
     } catch (Exception e) {
             Log.e("getDeviceId", e.getMessage(), e);
     }
     return deviceId;
}
private String convertToMD5ID(final String string) {
     if (string == null) {
             return null;
     }
     try {
         MessageDigest md = MessageDigest.getInstance("MD5");
           md.update(string.getBytes());
           BigInteger number = new BigInteger(1, md.digest());
           String md5 = number.toString(16);
           while (md5.length() < 32)
         md5 = "0" + md5;
         return md5;
     } catch (NoSuchAlgorithmException e) {
         return null;
     }
}

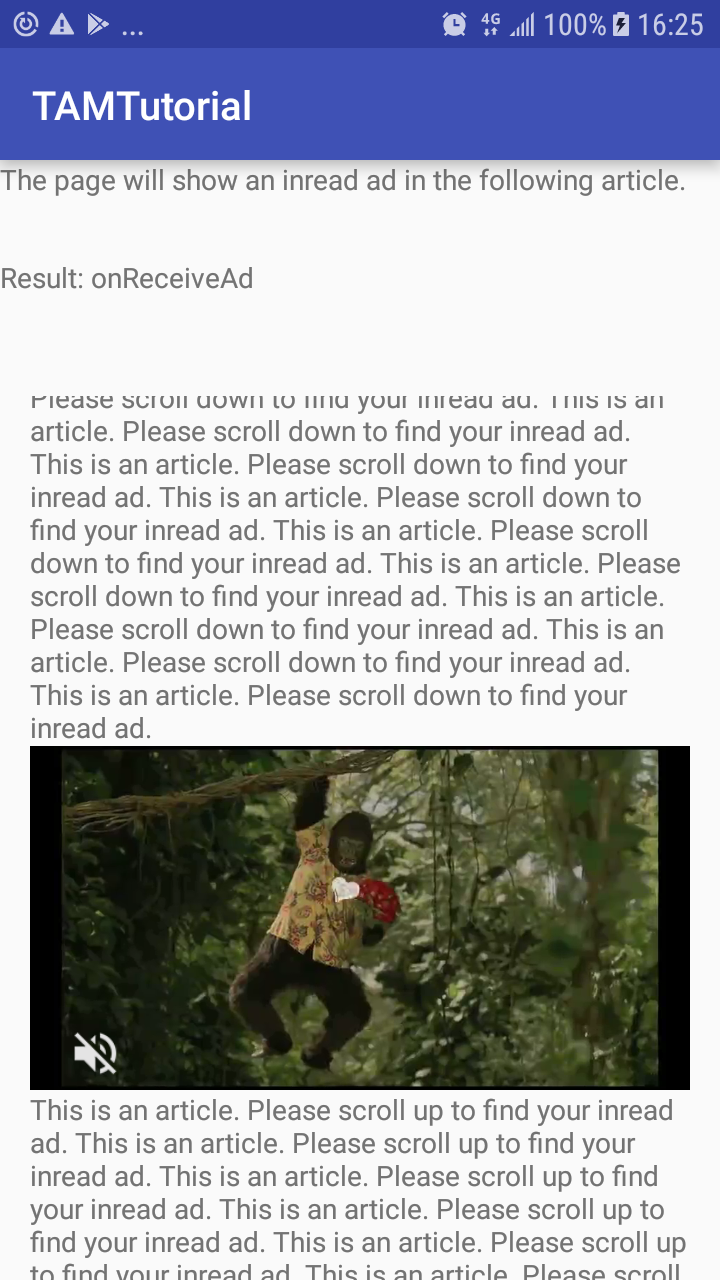

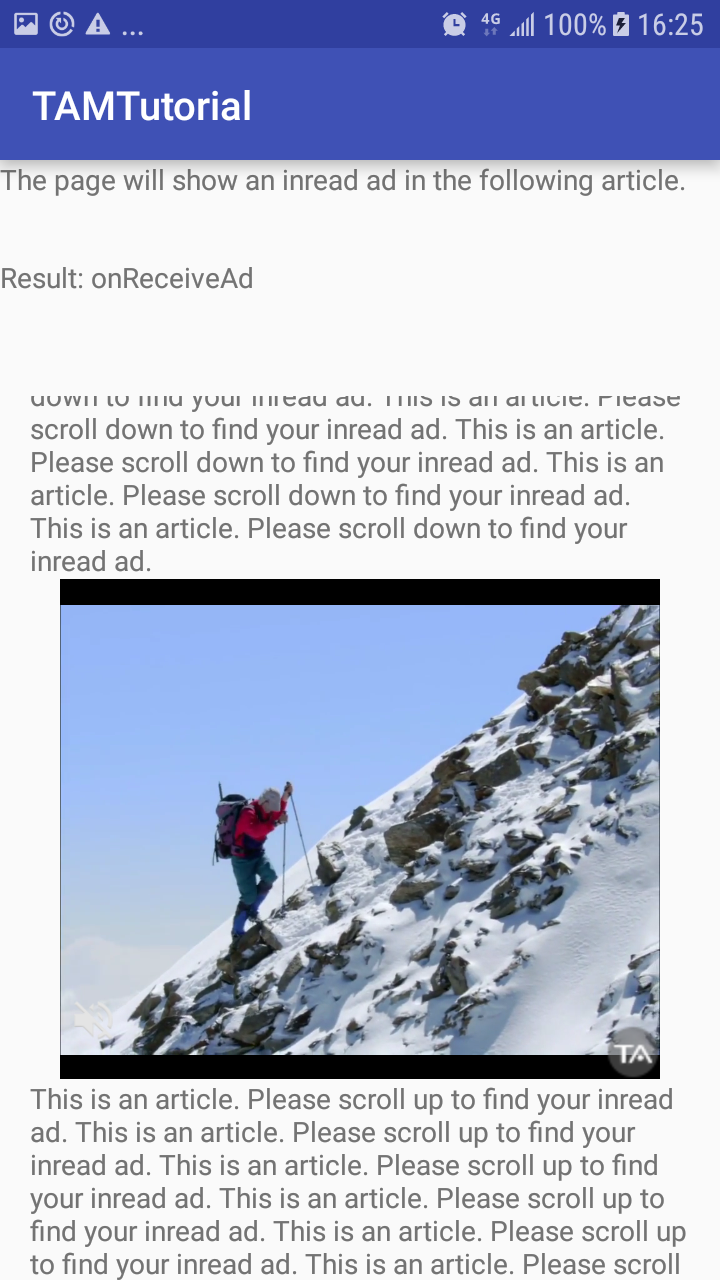

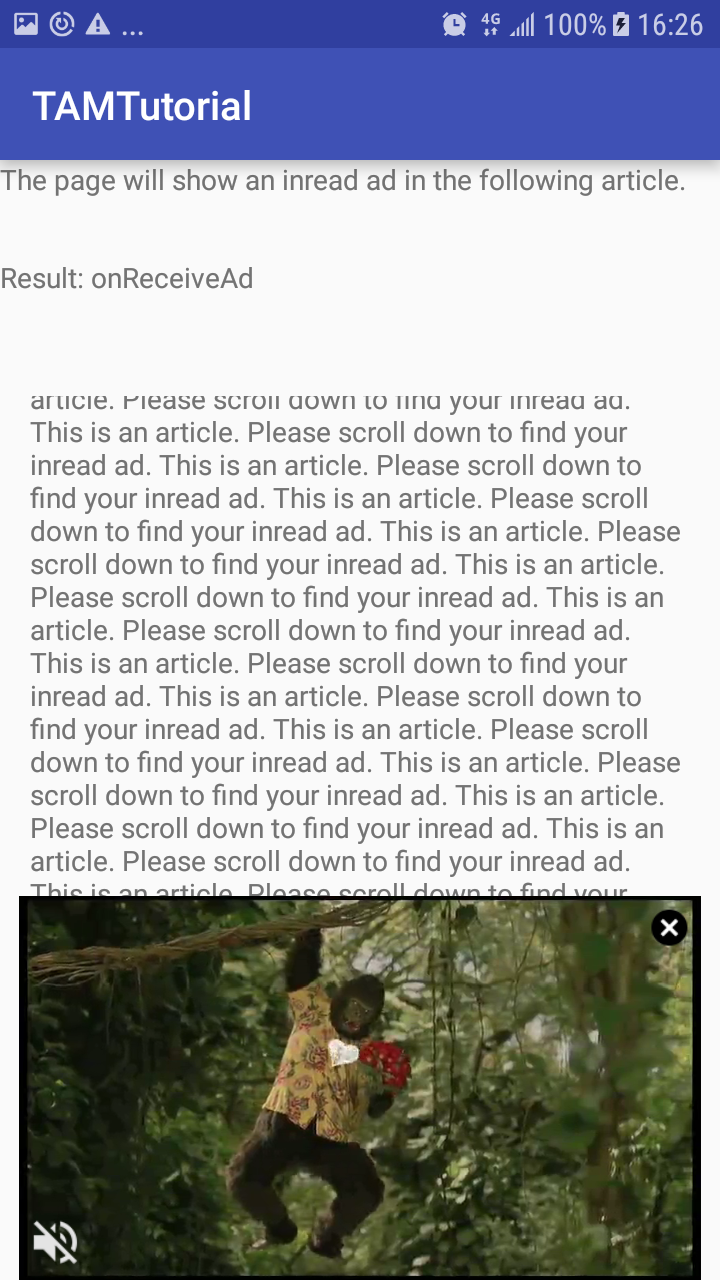

廣告畫面展示

大圖式	300x250	Anchor
300px	300px	300px
