Android BeaconSDK Tutorial

• 廣告請求

請在您程式開始的Activity加入下列程式碼，以啟動TWMBeaconSDK。啟動成功後SDK會在背景偵測附近是否有Beacon存在，並且依據Beacon的相關資訊進行廣告請求，您不需再做任何額外設定。

 //依序傳入activity , 版位ID , TWMBeaconRequest
 TWMBeaconSDK.init(MainActivity.this, 您的版位ID, new TWMBeaconRequest.Builder.build());

• TWMBeaconRequest

TWMBeaconRequest為請求設定檔，提供的function及說明如下，請依您的需求進行設定。 

 setNotificationIcon(int icon)

:*設定掃描模式

TWMBeaconSDK提供與原生方法相同的三種掃描模式，預設為LowPower模式。若無特殊需求，建議您不需設定此選項。
SCAN_MODE_BALANCED , SCAN_MODE_LOW_LATENCY ,SCAN_MODE_LOW_POWER

 setScanMode(ScanMode scanMode)

:*設定測試模式

測試模式所有的請求將不會被記錄，傳入的testDevice字串請您參考Android_Banner_Ads_I_2.0

 addTestDevice(String testDevice)
 setTestDevices(Set<String> testDevices)

• 加入TWMBeaconListener監聽廣告投放情況

 TWMBeaconSDK.setAdListener(new TWMBeaconListener() {
   @Override
   public void onReceiveAd() {
     // 成功收到廣告時通知
   }
   @Override
   public void onFailedToReceiveAd(TWMBeaconRequest.ErrorCode errorCode) {
     // 當請求廣告失敗時通知
   }
   @Override
   public void onPresentScreen() {
   // 廣告呈現在頁面時通知
   }
   @Override
   public void onDismissScreen() {
   // 關閉廣告時通知
   }
   @Override
   public void onFailedStart (String errorMessage) {
   // 無法成功開啟服務時通知
   }
 });

• 完整範例請參考下列

:*Activity

 package com.taiwanmobile.beacontest;
 import android.content.Intent;
 import android.os.Bundle;
 import android.support.annotation.NonNull;
 import android.support.v7.app.AppCompatActivity;
 import android.view.View;
 import com.taiwanmobile.beaconsdk.settings.BluetoothDialogSettings;
 import com.taiwanmobile.beaconsdk.internal.TWMBeaconRequest;
 import com.taiwanmobile.beaconsdk.internal.TWMBeaconListener;
 import com.taiwanmobile.beaconsdk.internal.TWMBeaconSDK;
 import com.taiwanmobile.beaconsdk.service.TWMBeaconService;
 public class MainActivity extends AppCompatActivity {
   TWMBeaconRequest request;
   @Override
   protected void onCreate(Bundle savedInstanceState) {
       super.onCreate(savedInstanceState);
       setContentView(R.layout.activity_main);
       //設定TWMBeaconRequest
       request = new TWMBeaconRequest.Builder()
       //設定通知列icon
       .setNotificationIcon(YOUR_ICON)
       .build();
       //啟動TWMBeaconSDK
       TWMBeaconSDK.init(MainActivity.this, "您的版位ID", request);
       TWMBeaconSDK.setAdListener(new TWMBeaconListener() {
           @Override
           public void onReceiveAd() {
           }
           @Override
           public void onFailedToReceiveAd(TWMBeaconRequest.ErrorCode errorCode) {
           }
           @Override
           public void onFailedStart(String errorMessage) {
           }
           @Override
           public void onPresentScreen() {
           }
           @Override
           public void onDismissScreen() {
           }
       });
   }
 }

:*Manifest

 <?xml version="1.0" encoding="utf-8"?>
 <manifest xmlns:android="http://schemas.android.com/apk/res/android"
   package="com.taiwanmobile.beacontest">
   <uses-permission android:name="android.permission.VIBRATE" />
   <uses-permission android:name="android.permission.INTERNET" />
   <uses-permission android:name="android.permission.BLUETOOTH" />
   <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
   <uses-permission android:name="android.permission.BLUETOOTH_ADMIN" />
   <uses-permission android:name="android.permission.WAKE_LOCK"/>
   <uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION"/>
   <application
       android:icon="@mipmap/ic_launcher"
       android:label="@string/app_name"
       android:theme="@style/AppTheme">
       <activity
           android:name=".MainActivity"
           android:label="@string/app_name"
           android:theme="@style/AppTheme.NoActionBar">
           <intent-filter>
               <action android:name="android.intent.action.MAIN" />
               <category android:name="android.intent.category.LAUNCHER" />
           </intent-filter>
       </activity>
       <activity android:name="com.taiwanmobile.beaconsdk.internal.TWMRedirectActivity"
           android:taskAffinity="com.taiwanmobile.beaconsdk.internal.TWMBeaconActivity"
           android:excludeFromRecents="true"/>
       <activity
           android:name="com.taiwanmobile.beaconsdk.internal.TWMBeaconActivity"
           android:configChanges="orientation|keyboardHidden|navigation|keyboard|screenLayout|uiMode|screenSize|smallestScreenSize"
           android:hardwareAccelerated="true"
           android:launchMode="singleTop"
           android:taskAffinity="com.taiwanmobile.beaconsdk.internal.TWMBeaconActivity"
           android:excludeFromRecents="true"
           android:theme="@android:style/Theme.Translucent"/>
       <service android:name="com.taiwanmobile.beaconsdk.service.TWMBeaconService" />
   </application>
 </manifest>

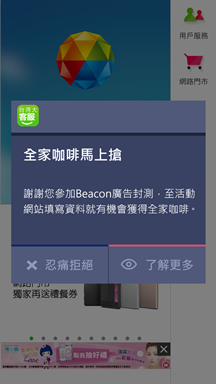

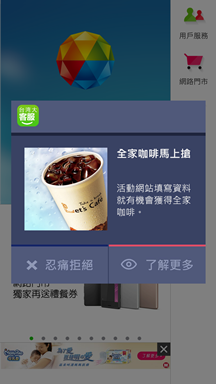

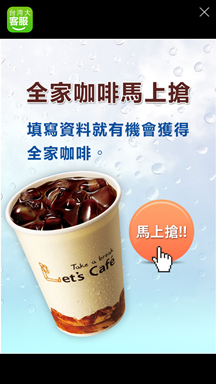

• 畫面展示

插頁全版廣告	插頁彈跳文字廣告	插頁彈跳圖文廣告
